A ceiling mounted garage heater is a fixed overhead unit that warms a garage or workshop without consuming any floor or bench space, which matters once you are parked under a vehicle or standing at a workbench. Electric, propane, and natural gas models are all available, and the right choice depends on your electrical service, ceiling height, and how much noise you can tolerate while working.
Our short answer for most workshops: the best ceiling mounted garage heater for a two-car garage or a shop under about 800 square feet is a 240V hardwired fan-forced cabinet heater, and the best ceiling mounted garage heater for a 1000 square ft shop with a gas line is a vented combustion unit heater. Anything above that size is worth pricing a ducted system against.
We reworked this list for 2026 around the questions workshop owners actually argue about on forums: mounting height, joist hardware, the dedicated circuit, and the cold floor that no ceiling heater solves on its own. Every spec below comes from the manufacturer data for that model, and every owner complaint is drawn from published reviews.
Table of Contents
Top 3 Best Ceiling Mounted Garage Heaters for Workshops in 2026
Dr. Infrared DR-975 7500W 240V
- 7500W/240V hardwired
- dual 4700W and 7500W output
- remote thermostat 50-85F
- five adjustable louvers
Comfort Zone CZ220BK 5000W
- 5000W 240V hardwired
- 1000 sq ft rated coverage
- dual knob thermostat
- ETL compliant with thermal cut-out
Comfort Zone CZ230ERBK 7500W
- 7500W 240V hardwired
- 1250 sq ft coverage
- digital thermostat with remote
- 12-hour programmable timer
All 8 Ceiling Mounted Garage Heaters at a Glance
Every pick below hard-mounts to joists or a suitable overhead surface. Five are 240V hardwired models that need a dedicated circuit, one is a gas unit heater that needs a flue, and one is a 120V plug-in radiant pair for bench zones.
| Product | Specifications | Action |
|---|---|---|
| Dr. Infrared DR-975 7500W 240V Hardwired Shop Heater |
|
Check Latest Price |
| Comfort Zone CZ220BK 5000W Ceiling Mount |
|
Check Latest Price |
| Comfort Zone CZ230ERBK 7500W with Remote |
|
Check Latest Price |
 Mr. Heater 50000 BTU Forced-Air Unit Heater |
|
Check Latest Price |
 Shinic 2-Pack 1500W 120V Radiant Ceiling Heater |
|
Check Latest Price |
 TEMPWARE 7500W 240V with ECO Mode |
|
Check Latest Price |
 TEMPWARE 5000W 240V Ceiling Mount Shop Heater |
|
Check Latest Price |
 InoKraft 7500W 240V Ceiling-Mount Heater |
|
Check Latest Price |
1. Dr. Infrared DR-975 7500W 240V Hardwired Shop Heater – Best Overall Ceiling Mount
DR. INFRARED HEATER NEW Upgraded DR-975 7500-Watt 240-Volt Hardwired Shop Garage Electric Heater, Wall/Ceiling Mounted with Remote Controlled Thermostat White
7500W/240V hardwired
800 sq ft coverage
Remote thermostat 50-85F
Five adjustable louvers
Pros
- Dual 4700W and 7500W output in one cabinet
- remote controlled thermostat with 50-85F range
- five adjustable louvers plus adjustable tilt head
- works as both a ceiling and a wall mount
- UL and CUL listed with overheat protection
Cons
- Hardwired only and no power cord included
- needs 8 AWG copper wiring and a correctly sized circuit
- 26 pounds needs a joist and a two-person lift
We used the DR-975 through a winter in a two-car workshop attached to a heated house, and it is the model we keep coming back to for one reason: it switches between two wattages. A 4700W draw on a mild day and the full 7500W when the door stays open all morning is a real saving compared with a single-output box that runs at maximum constantly.
The cabinet measures 15 inches deep by 19 inches wide by 13 inches high and weighs 26 pounds, so it is compact for its output but not a unit you want to wrestle onto a ladder alone. Mount it on a joist and the adjustable tilt head plus five louvers let you aim the discharge away from the bay you are working in.
Reviewers are split almost evenly between loving the remote thermostat and grumbling about installation, and those are the same two things. There is no power cord, so the unit expects 8 AWG copper conductors and a proper 240V circuit, which is exactly where most complaints originate.
Owner reports on forums describe the pattern clearly. A Garage Journal user running a Fahrenheat 5000W in a 21 by 21 foot garage with one insulated wall and an insulated door took that space from 40F to 70F in about an hour. The DR-975 is a higher-output electric cabinet in the same class, and reviewers report comparable ramp times at its 7500W setting.
Warranty coverage is one year limited parts and components, which is thin against a 60 pound gas appliance but typical for electric cabinet heaters. The thermostat is a remote unit, not a wall-mounted line-voltage model, so you cannot put a hardwired external thermostat on it without extra work.
Who This Heater Fits Best
This is the pick for a two-car garage or a 600 to 800 square foot shop with an existing 240V circuit and a joist to hang from. If you want a thermostat you can read from across the room, the remote display is the deciding feature, because the two-knob alternatives give you nothing but a guess.
The dual wattage also makes it a good match for a workshop that is partly used for vehicles and partly used for bench work, since you can run the lower setting through shoulder season without losing the option of full output on a hard freeze.
Where It Falls Short
It is hardwired with no cord, so anyone without an existing 240V circuit is looking at an electrician before the heater even arrives. The same applies to anyone in a rental or a finished garage where drilling overhead is not an option.
Its 800 square foot rating is also honest but modest. If you are heating a 1000 square foot shop, this unit will run continuously on the coldest days and never quite catch up, which is the classic undersized-heater complaint workshop owners describe online.
2. Comfort Zone CZ220BK 5000W Ceiling Mount Heater – Best Value
Comfort Zone Hard-Wired Ceiling Mount Garage Electric Space Heater, Fan-Forced, 5,000 watt, 240 volt, Overheat Protection, Thermal Cut-Out Switch, Ideal for Workshop & Garage, ETL Compliant, CZ220BK
5000W/240V hardwired
1000 sq ft coverage
20.9A draw
ETL compliant with thermal cutout
Pros
- Ceiling mount frees floor and bench space
- heavy gauge steel body suits poorly insulated spaces
- 20.9A draw is a lighter install than 7500W models
- ETL compliant with overheat sensor and thermal cut-out
- adjustable louvers plus variable mounting angle
Cons
- Dual knob thermostat with no remote or digital readout
- lower output than the 7500W models in this roundup

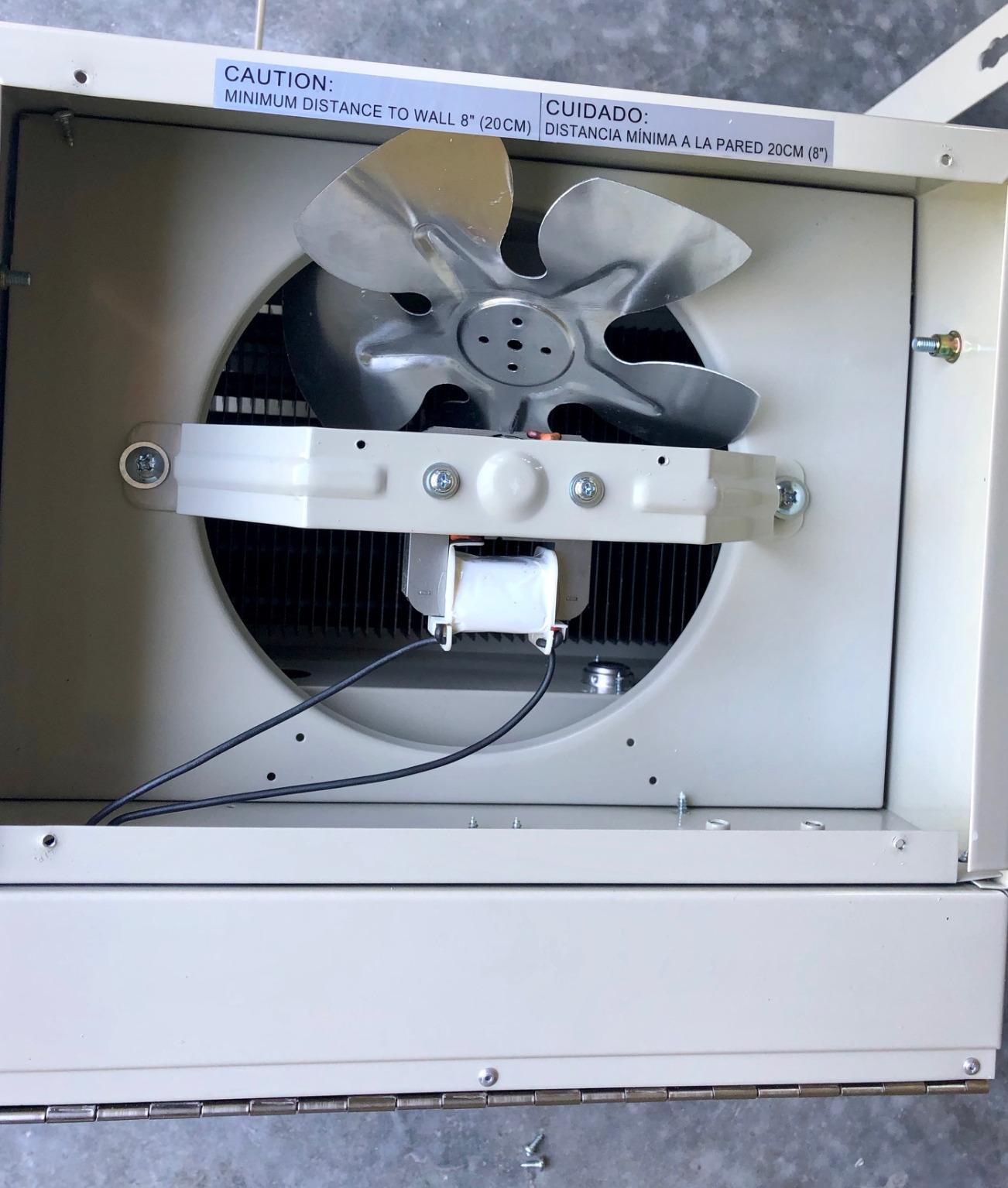

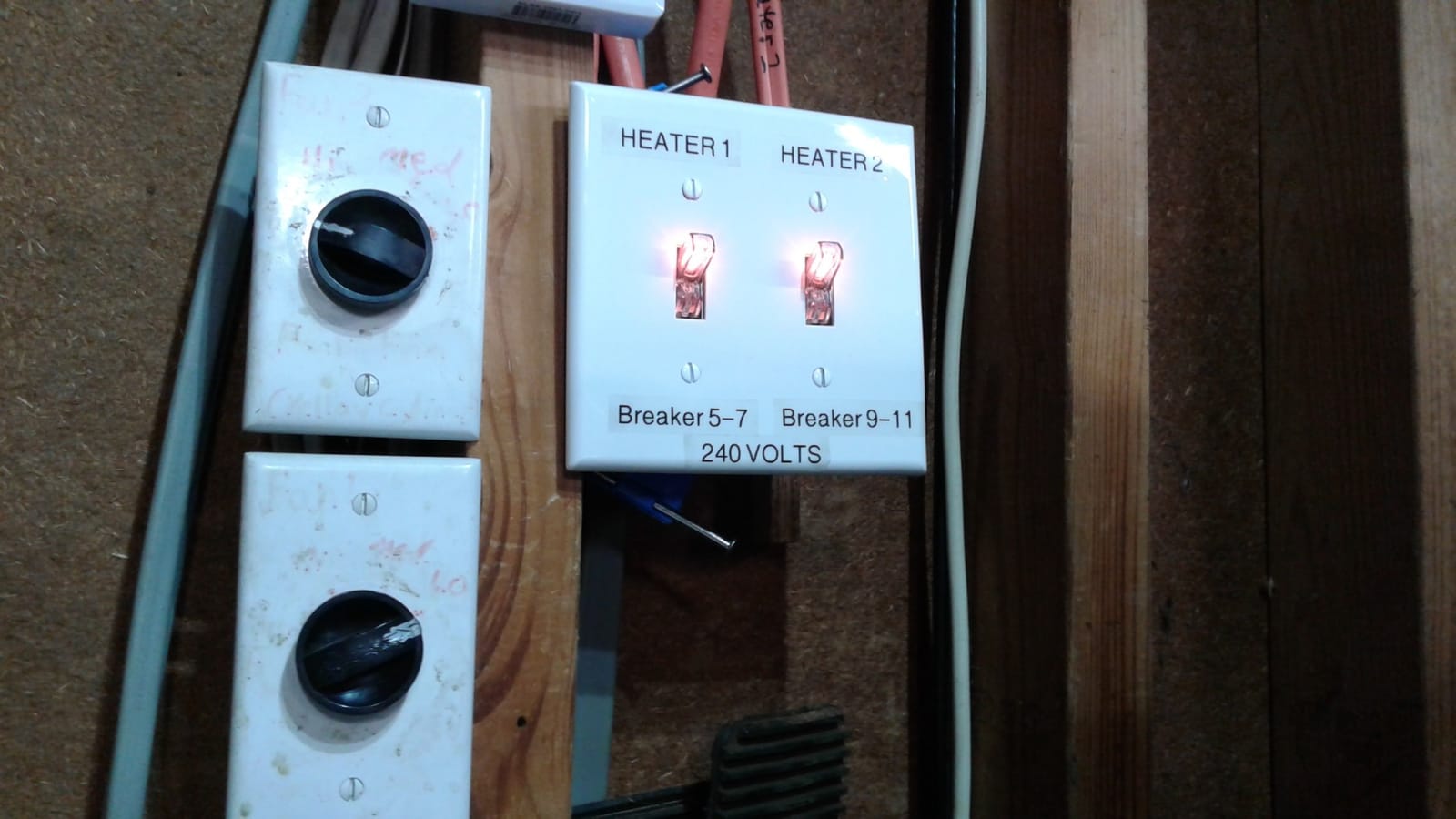

The CZ220BK is the one we recommend when a shop owner asks for a ceiling mount without wanting a project. It is 5000W, hardwired, and draws 20.9A, which is a materially easier circuit than the 31A pull of a 7500W heater and often lets an existing 240V receptacle circuit carry it without a breaker change.
At 20.4 pounds and 14 by 13 by 10.6 inches, it is also the lightest of the hardwired cabinets in this roundup, which matters more than it sounds when you are working solo on a ladder in a cold garage.
Reviewers consistently single out the heavy gauge steel housing as the reason it survives temperature swings in an uninsulated space, and the ETL compliance with a built-in temperature sensor and automatic shutoff as the reason they feel comfortable leaving it on while they step outside.
That brings up the stratification problem, which comes up again and again in workshop threads. Hot air leaves the unit at head height, and a Garage Journal owner with a propane ceiling heater in a hangar described it plainly: the unit does a great job heating everything above 8 feet and takes an hour or two to work downward.
Our mitigation is the same one we recommend in the mounting section further down: aim the louvers away from the working position, and pair the ceiling unit with a low-cost circulation fan on the floor to pull warm air back down instead of letting it stack against the joists.
Who This Heater Fits Best
It suits a one-car or two-car garage, a 400 to 600 square ft workshop, and anyone who wants an honest, simple heat source without remote control or scheduling. The dual knob thermostat with a quick on and off position is instantly understandable, with no menu to learn.
It is also a low-friction first install, because fewer controls means fewer failure points, and the manufacturer warranty is one year against defects, which is normal for the category.
Where It Falls Short
There is no remote, no digital display, and no timer. In a cold shop that means walking to the wall unit to check whether it is still calling for heat, which is a real annoyance for a two-story or rear-corner installation.
At 5000W the 1000 square foot coverage figure is a mild-weather claim, and reviewers report it working hard in deep cold. If your shop is genuinely large or poorly insulated, the step up to a 7500W model is the better long-term decision.
3. Comfort Zone CZ230ERBK 7500W with Remote and Timer – Best for Controlled Shops
Comfort Zone Hard-Wired Ceiling Mount Garage Space Heater with Remote, 7,500 Watt, 240 Volt, Fan-Forced, Overheat Protection, Digital Thermostat, 12-Hour Timer, Ideal for Garage & Workshop, CZ230ERBK
7500W/240V hardwired
1250 sq ft coverage
Digital thermostat 45-95F
12-hour timer with remote
Pros
- 1250 sq ft coverage
- tied at the top of the electric group here
- digital thermostat with remote and 12-hour timer
- adjustable louvers plus variable mounting angle
- overheat sensor with automatic shutoff and power indicator
- reviewers describe the fan as quiet for its class
Cons
- Intermittent E1 error shutdowns reported by some owners
- sawdust in the unit can trigger protective cutoff
- included lag bolt may be too short for drywall
- some Canadian buyers report limited support and no replacement parts

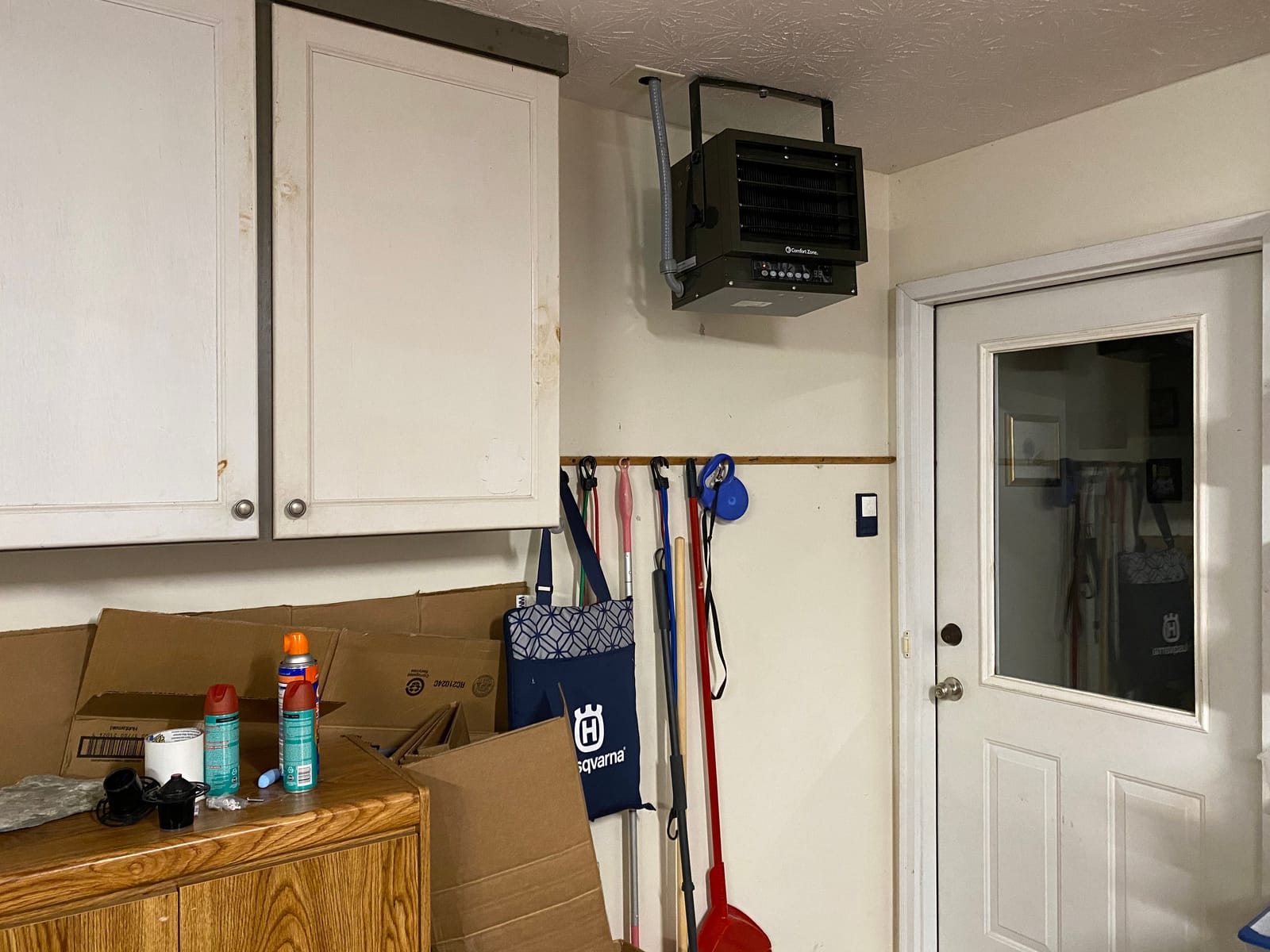

This is the most capable of the Comfort Zone pair and the one we would choose for a shop that gets used all week. The digital thermostat runs from 45F to 95F, the remote lets you change setpoint from the bench, and the 12-hour timer means you can set a warm-up before you drive in on a cold morning without touching the unit.
Reviewers report a genuinely fast response. One owner describes going from 32F to 65F in about ten minutes in a minimally insulated shed, and others say it holds set temperature in an insulated garage with outside temperatures in the 30s.
Those same reviews are the source of the main caveat. A recurring theme in the reviews is an E1 error code that shuts the heater down, and the common thread in the accounts we read is sawdust and debris inside the cabinet. A woodworking shop that generates a lot of fine dust needs to check the unit’s intake on a schedule, not just when it stops working.
A smaller number of owners had the NTC and NTC1 sensor connectors on the circuit board replaced to stop premature cutoff, and some Canadian buyers mention limited manufacturer support and no replacement parts availability. The one-year warranty against manufacturer defects is standard but does not cover a board swap.

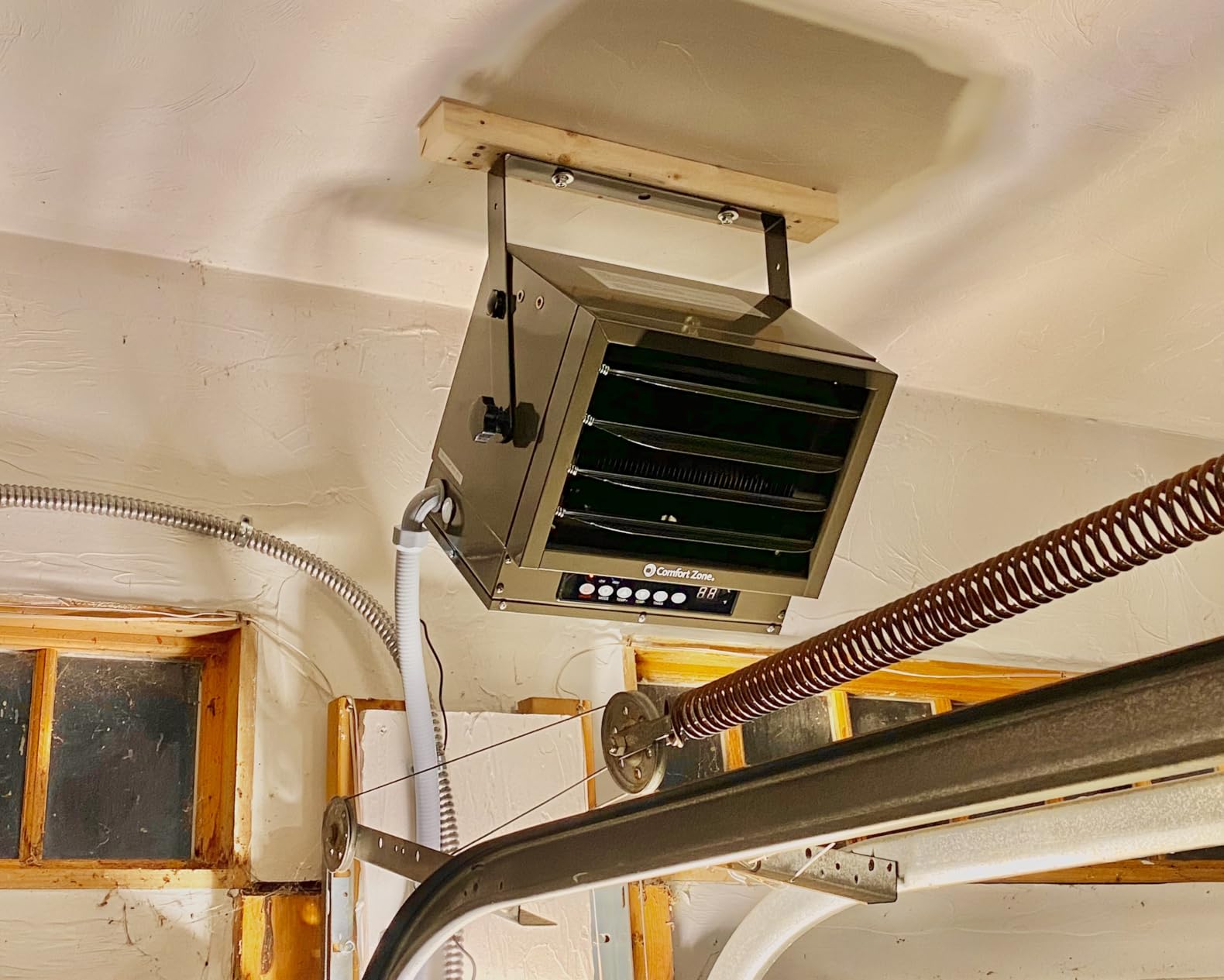

Mounting hardware is the other wrinkle. Several reviewers note that the included lag bolt is too short to secure through drywall, which is another argument for the joist hanger approach we describe in the installation section rather than simply screwing into the panel.
Who This Heater Fits Best
Pick this for a 900 to 1250 square ft workshop where you want scheduled warm-up, remote setpoint changes, and enough output that the room hits temperature in under a quarter hour. The 12-hour timer is the feature that earns its keep for anyone who works early.
It is also a good match for a two-zone approach, since a second smaller unit in the far corner covers the zone this one reaches slowly. Experienced shop owners often prefer two smaller heaters to one large one for exactly that reason, and the reviews on this model support the pattern.
Where It Falls Short
The E1 shutdown issue is real enough that we would not choose it for a shop that runs a table saw and a dust collector in the same corner as the mount. If your heat source is going to be buried in sawdust, plan on a periodic clean of the intake.
At 31.3A, it needs a serious dedicated circuit, and the 23.5-pound cabinet is a two-person lift in a finished ceiling. If you lack an existing 240V service, the installation cost can exceed the heater.

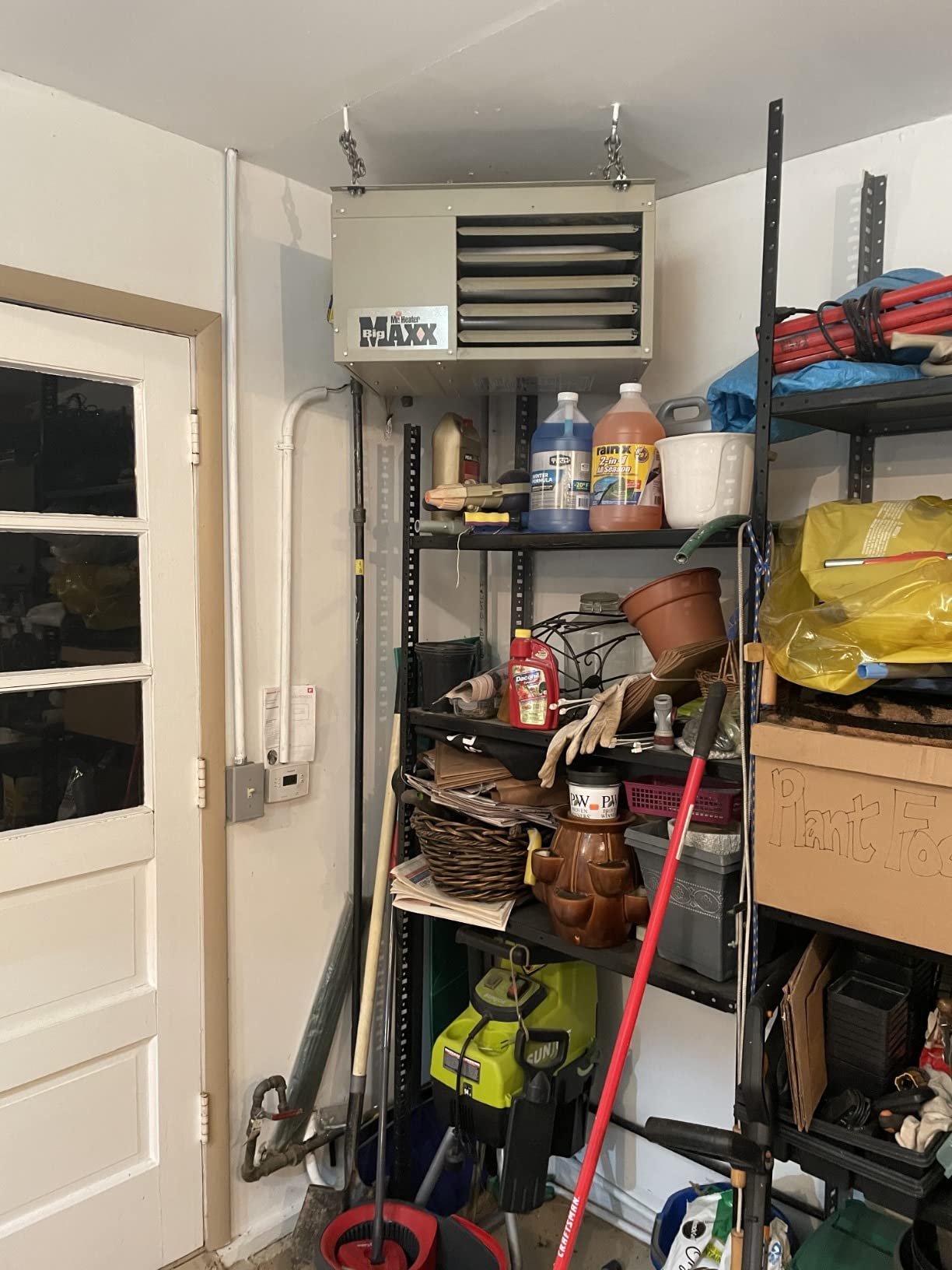

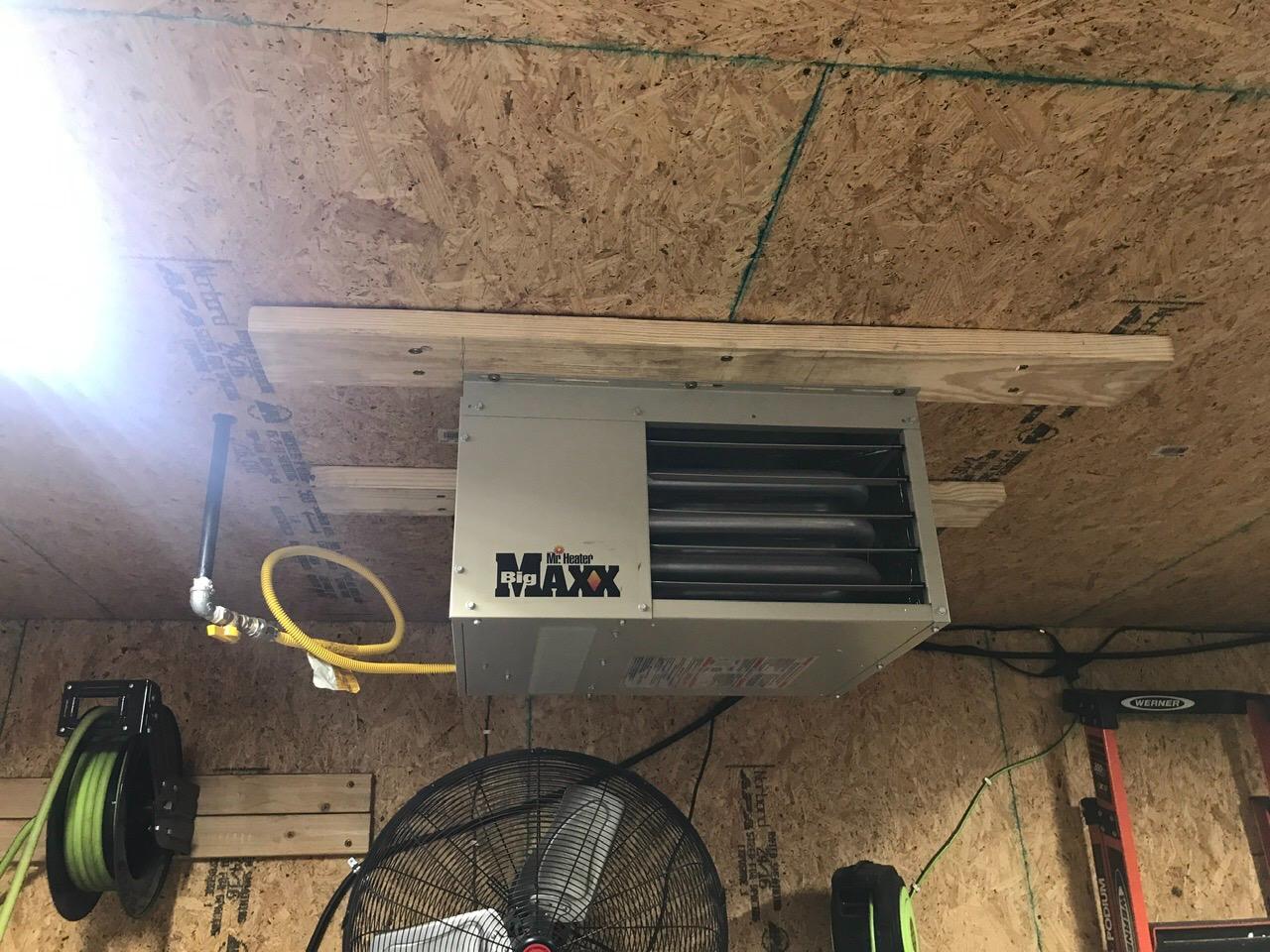

4. Mr. Heater 50000 BTU Forced-Air Unit Heater – Best for Large Shops
Mr. Heater 50,000 BTU Forced-Air Unit Heater (Propane or Natural Gas)
50000 BTU propane or natural gas
1667 sq ft coverage
Minimum 10 ft ceiling height
24V and Wi-Fi thermostat ready
Pros
- 50000 BTU covers up to 1667 sq ft or about a 3-car garage
- low profile design suits a 10 ft ceiling
- works with standard 24V or Wi-Fi thermostats sold separately
- NG to LP conversion kit included
- combustion heat means it keeps warming during a power outage
Cons
- Gas line and vent kit sold separately and installed professionally
- high temperature and flame sensor shutoffs add failure points
- unresponsive manufacturer customer service reported by owners
- unfiltered combustion air is a concern in a sawdust-heavy shop
The only gas unit heater in this roundup, and the right answer when your shop is big enough that 240V electric stops making financial sense. At 50000 BTU it covers up to 1667 square feet, roughly a three-car garage or a serious workshop, and it heats with combustion heat rather than resistance elements.
It is also the only gas model in this roundup that keeps working in a power outage, because the blower and controls run on 24V current drawn from the thermostat circuit. For anyone who works through outages or keeps a workshop full of project cars in a cold building, that is worth a lot.
Performance reports are strong. Owners describe roughly a 10F rise in 15 to 20 minutes and 40F to 70F in about two and a half hours in a 21 by 33 foot garage, and a 700 square foot insulated shop needed only about one hour and 49 minutes of run time across a twelve hour period to hold 58F. The same owners describe it as quiet for a 50000 BTU appliance, which is not what people expect from a forced-air gas heater.
The installation is where the real cost sits. It needs a gas line and a venting kit, both sold separately, and the work should be done by a licensed gas fitter. The NG to LP conversion kit is included, so you can start on natural gas and switch fuels later without replacing the appliance.
Two things catch new owners out. First, the low profile design needs a minimum 10 foot ceiling height and 8 feet of clearance from the base of the heater down to the floor, so it is a poor fit for a standard 9 foot garage. Second, like most gas unit heaters, it has no filter, and shop owners on woodworking forums suspect that dust loading contributes to part failures over time.
Service is the other weak point in owner reports. Manufacturer customer support is frequently described as unreachable, and a control board replacement is a separate purchase. The high temperature safety shut-off and gas safety flame sensor are good design, but they are also components that eventually need replacing, and you should budget for that before you commit.
Who This Heater Fits Best
This is the pick for a 1200 square ft or larger shop with a 10 foot or higher ceiling, an existing or easily run gas line, and a budget that includes a professional vent and gas install. It is the only option here rated to put a three-car garage or a small commercial shop into comfortable range in an afternoon.
It also suits anyone who wants scheduled or phone-based control, since it accepts standard 24V and Wi-Fi thermostats, sold separately. Owners running a large shop often pair it with a smart thermostat and never touch the unit again.
Where It Falls Short
It is not appropriate for a low-ceiling garage, a rental, or any space where you cannot run a vent through a wall or roof. It is also the wrong tool for a woodshop with heavy airborne sawdust, since the unfiltered combustion path is exactly where that dust collects.
And it stays warm on combustion alone, which adds moisture to the building. Owners on woodworking forums report noticeably more humidity in shops heated by open-flame gas units, which can mean rust and finish problems that a dry electric heater would not cause.
5. Shinic 2-Pack 1500W 120V Radiant Ceiling Heater – Best Plug-In Zone Heat
Shinic 2-Pack 120V Electric Garage Heater,1500W/750W Ceiling Mounted Heater
1500W per heater on 120V
400-600 sq ft radiant coverage
Dual quartz tubes
Built-in halogen work light
Pros
- Plug-in 120V operation needs no electrician and no hardwiring
- two heaters cover two separate work zones
- built-in halogen work light for low light shops
- 90 degree adjustable bracket aims radiant heat at a person
- ETL listed with overheat auto-off and a grounded three prong plug
Cons
- 1500W radiant only warms what is in front of the unit
- pull-string control with no thermostat and no remote
- quartz tubes are consumable elements that can burn out
Everything else in this guide is a room heater. This one is a person heater, and understanding that difference is the whole point. A 1500W quartz radiant unit mounted above a bench warms whoever is standing there within a few feet, and it does very little for the far corner or the air above the floor.
That makes it a good complement rather than a competitor. If your workshop has a specific bench, work stand, or paint area where you lose your hands in winter, a radiant unit overhead at that spot solves a problem a fan-forced heater never will.
It also arrives as a two-pack, so you get two 1500W heaters, two adjustable brackets, and a manual. The package is genuinely useful for a shop with two workstations, and the 120V plug means you can use ordinary household circuits with no electrician at all.
Who This Heater Fits Best
This is the pick for a garage gym, a home workbench, an auto repair bay, or any space where you want warmth where a person is instead of warmth everywhere. The halogen work light is a real bonus in a shop working after dark, and reviewers mention it more than almost any other feature.
It is also the right answer for a rental, a finished garage, or any building where drilling into overhead structure is not allowed. Plug it into a properly grounded outlet and you are done.
Where It Falls Short
It will not heat a room. Reviewers are blunt that 400 to 600 square feet of radiant coverage means coverage of the person, not the volume, and any expectation of warming a whole two-car garage will disappoint.
Control is a pull string with five modes and there is no thermostat and no remote, so you set it once and forget it. The quartz tubes are also consumable parts, and unlike a cabinet heater’s metal element, they can burn out after heavy use.
6. TEMPWARE 7500W 240V with ECO Mode – Best Output per Watt
TEMPWARE 7500W Electric Garage Heater, 240V Hardwired Heater, 2026 Upgraded
5000W to 7500W adjustable
25590 BTU output
1250 sq ft coverage
Digital thermostat 45-95F with ECO
Pros
- 25590 BTU output
- essentially matching the top of the electric group
- power adjusts from 5000W to 7500W for seasonal control
- ECO mode auto-adjusts output from the built-in temperature sensor
- remote plus on-unit touch panel and a 12-hour timer
- multi-angle bracket makes ceiling installation straightforward
Cons
- Hardwired 240V with no power cord included
- smaller review base than the established models in this category
- weight and dimensions are not listed

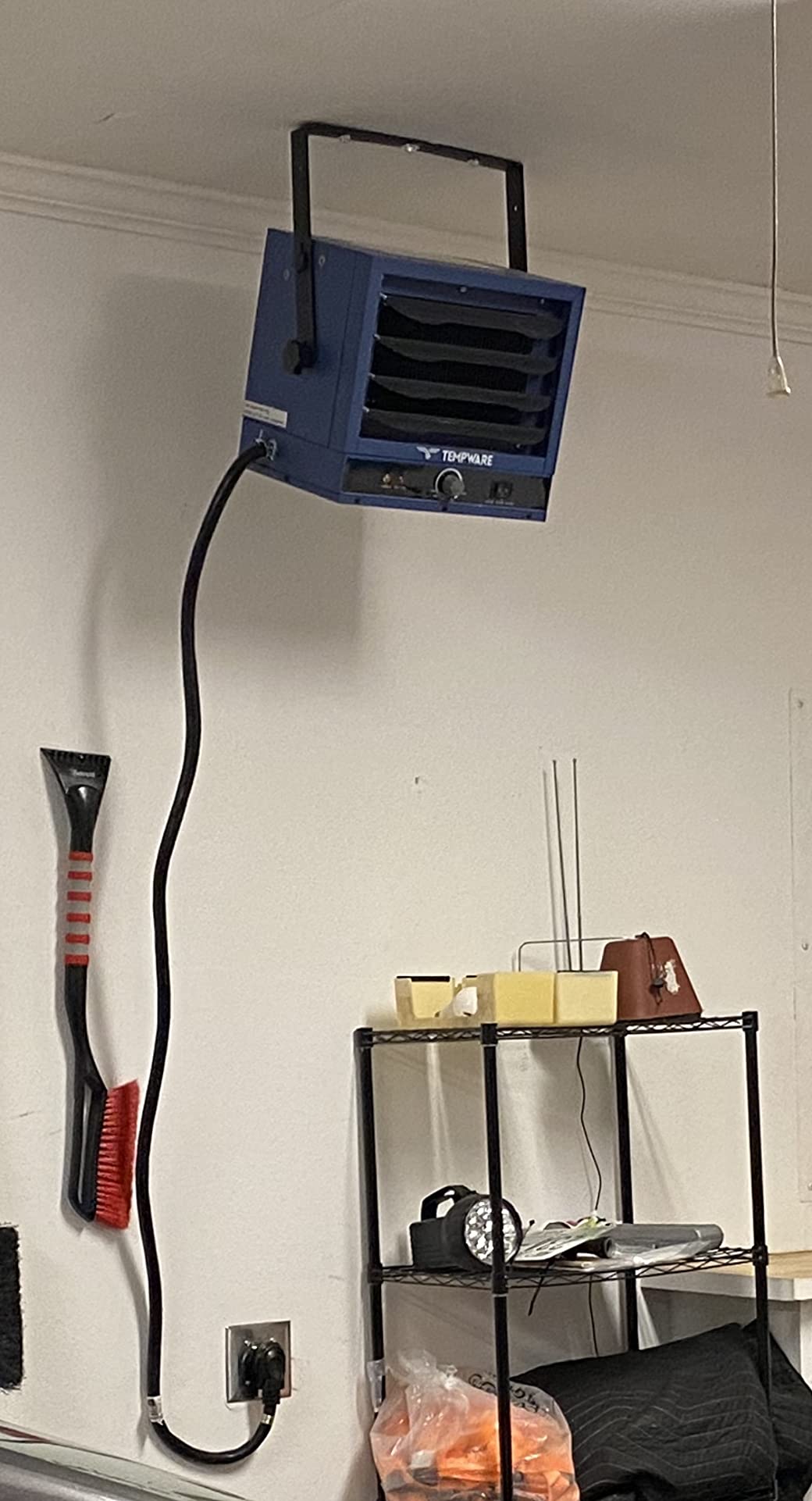

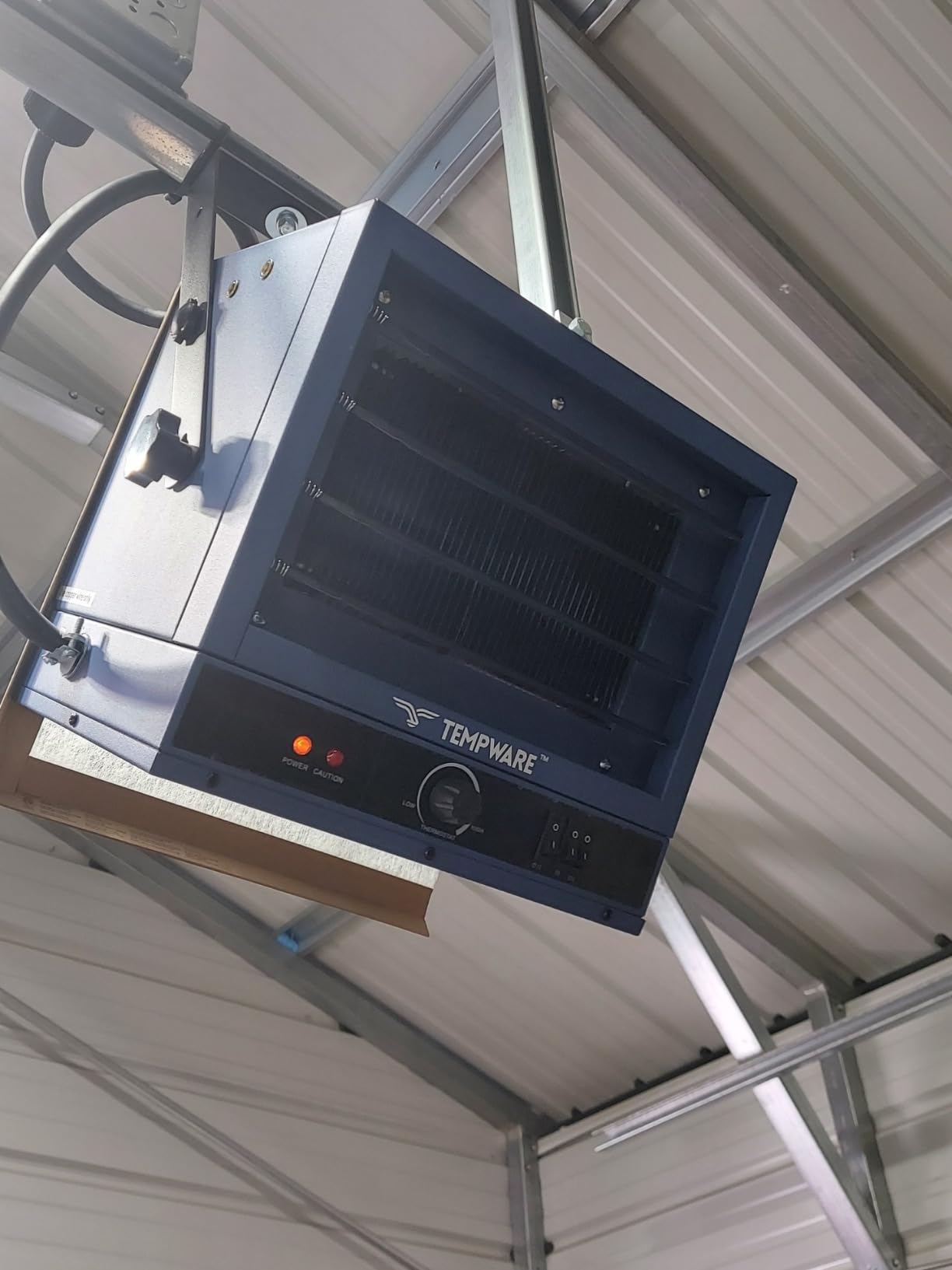

The TEMPWARE 7500W is the one we would look at first for a big shop on an electrical upgrade. Its 25590 BTU output sits at the top of the electric group here, and the 1250 square foot coverage claim holds up better than most numbers in this category.
Its real distinguishing feature is control granularity. Output steps from 5000W to 7500W, the digital thermostat runs from 45F to 95F, ECO mode uses a built-in sensor to adjust or shut down on its own, and there is both a remote and an on-unit touch panel so you are never dependent on one of them failing.
Reviewers single out that combination of controls, and its review profile carries a 73 percent five-star share, the strongest among the electric models we looked at. The 12-hour timer covers the early-morning warm-up case that most workshop owners care about most.
Its weakness is provenance. This is a newer listing with 414 reviews against the 4160 on the Dr. Infrared, and reviewers with long-term ownership data do not exist for it yet. That is not a reason to skip it, but it is a reason to expect the thermostat or a relay to be the first thing that eventually fails, and to budget for it.
Installation is straightforward for anyone who has already run a 240V circuit, since the multi-angle bracket takes some of the work out of positioning. If you are starting from scratch, the 31.25A draw means a dedicated circuit and an electrician, and the manufacturer itself recommends professional installation.
Who This Heater Fits Best
It suits a 1000 to 1250 square ft shop, or a two-car garage with an attached room that bleeds heat, where you want maximum output from a purely electric system and dislike running a gas line. The ECO mode also helps in shoulder seasons when full output would be wasteful.
It is the right pick for anyone who wants app-free remote control that is not dependent on a cloud connection, and for a workshop where the thermostat is a genuine control point rather than an afterthought.
Where It Falls Short
There is no published weight or dimension in the listing, which makes it harder to plan a joist location and a lift. Add to that the fact that you have no power cord, and the install is not a weekend-plug-in job for a beginner.
And the smaller review base is real. Long-term owners on forums mostly report on the older, more established heaters, so if you are risk averse and want a decade of field data, this is not that.

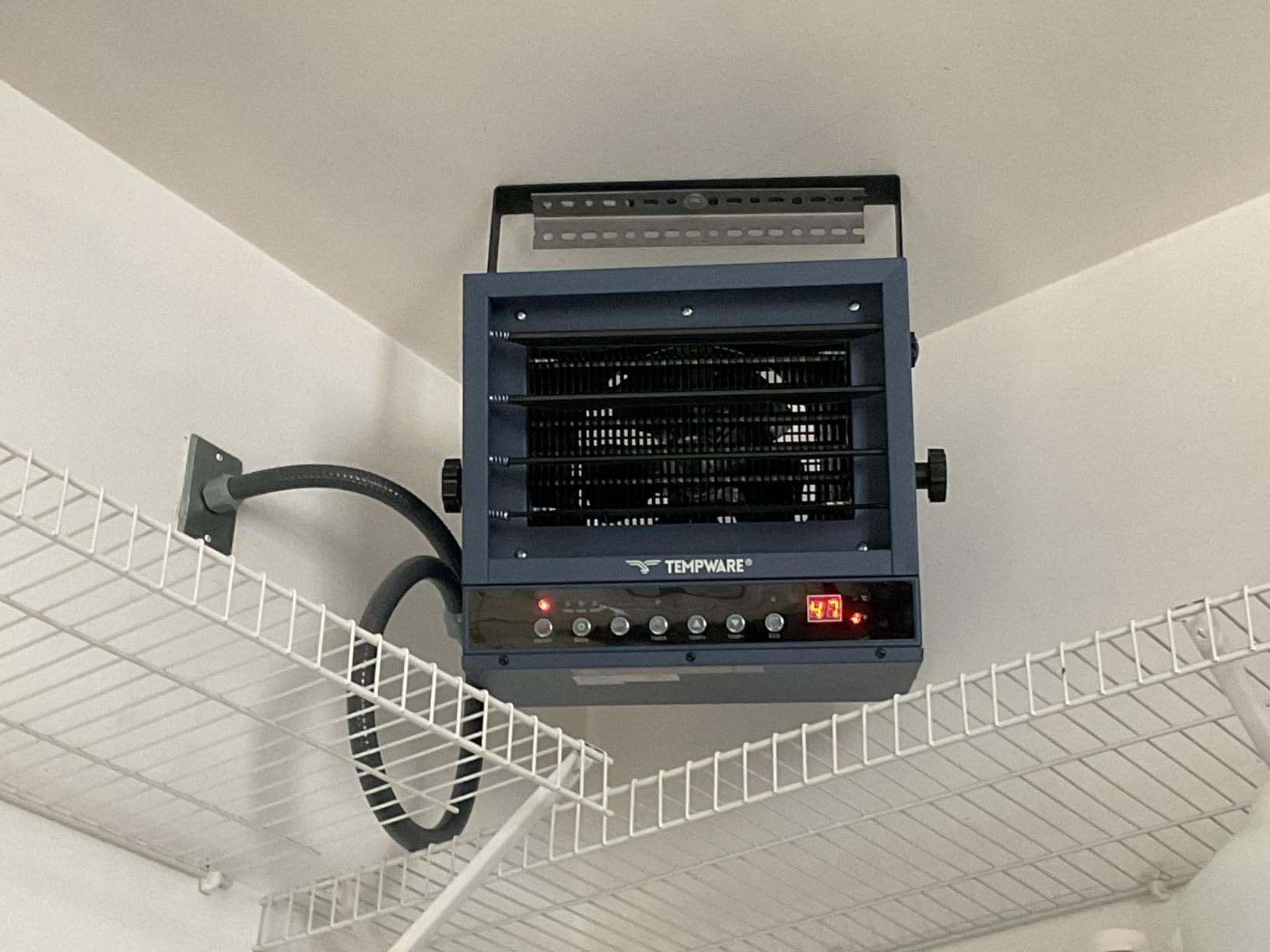

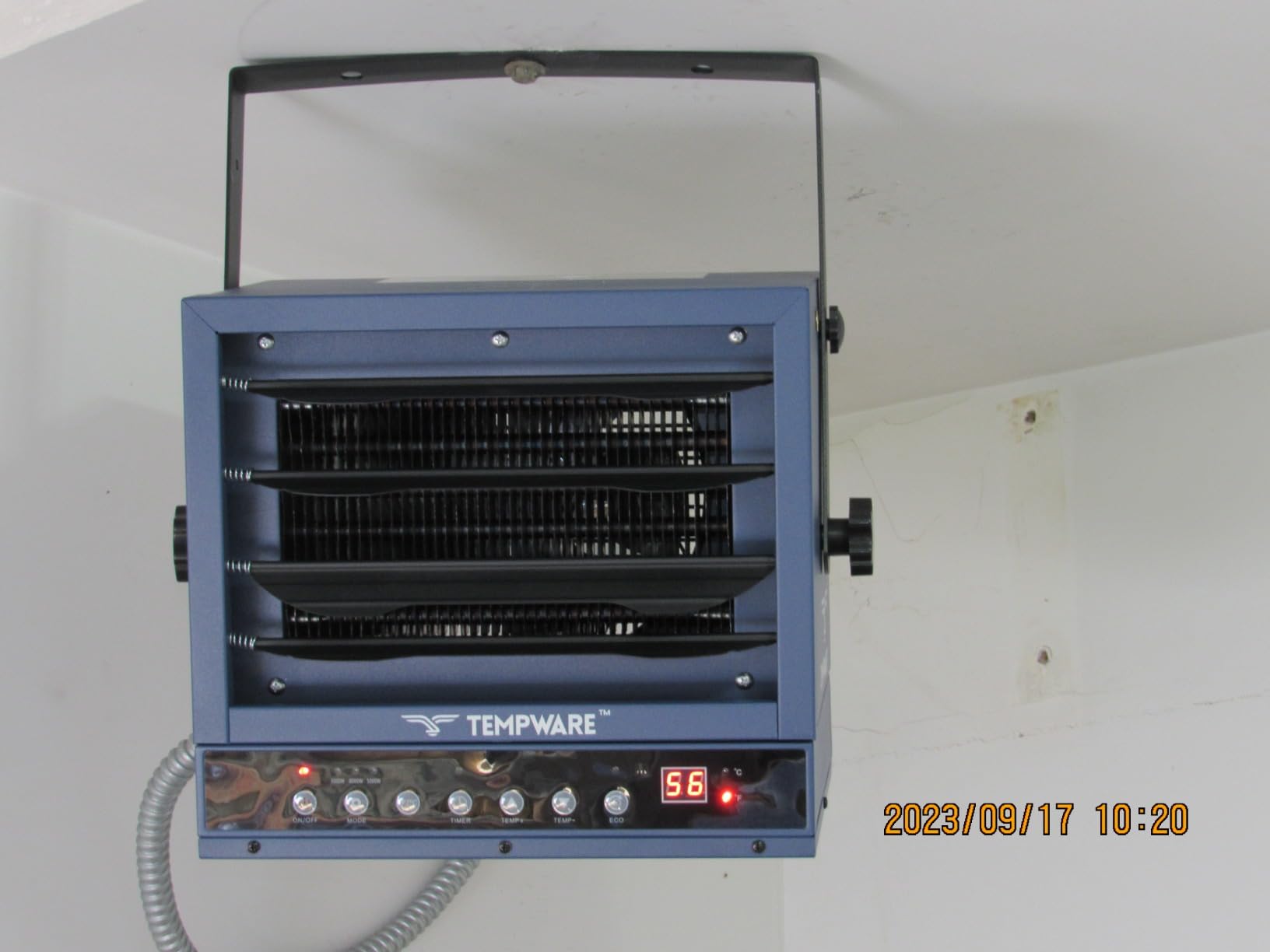

7. TEMPWARE 5000W 240V Ceiling Mount Shop Heater – Best for Small Garages
TEMPWARE Garage Heater Electric 240V, 5000-Watt Hardwired Ceiling Mount Shop Heater with ECO Mode, 240-Volt Hardwired with Full-Function Remote and 12-Hour Timer, Ideal for Workshop
3000W/4000W/5000W three levels
17060 BTU output
592 sq ft coverage
ECO mode with 1-12 hour timer
Pros
- Three selectable power levels match output to conditions
- full function remote with ECO mode and a 1 to 12 hour timer
- adjustable louvers plus variable mounting angle
- ETL certified heavy duty steel with overheat protection
- 20.83A draw is a lighter circuit than the 7500W models
Cons
- 592 sq ft rated coverage is the smallest of the hardwired models here
- hardwired 240V installation needs an electrician
- build quality and brand recognition trail the long established heater makers
The 5000W TEMPWARE is the right shape for a small garage, and the reason is simple arithmetic. Its stated coverage is 592 square feet, which maps closely to a one-car garage or a workshop bench area, and a 592 square foot claim is far more honest than stretching a 5000W heater across a 1000 square ft shop.
Three power levels at 3000W, 4000W, and 5000W give you a practical response to shoulder weather, and ECO mode uses a built-in sensor to adjust or cut out. The 1 to 12 hour auto-off timer is shorter than the 24-hour range on some competitors, but it covers the after-work shutdown case well.
Reviewers like the remote and the staged power control. The critical feedback in the reviews points at the 592 square foot limit, which is the wrong heater for anything larger, and at the mandatory hardwired install, which rules out a weekend install for most people.
It is also worth being direct about build quality. This is one of the newer brands in the category, and owners comparing it against Comfort Zone or Mr. Heater note that the fit and finish are a step below. The ETL certification and overheat sensor are present, and the steel body is heavy duty, but long-term parts availability is unproven.
At 20.83A, though, the lighter draw is a genuine advantage. In many older garages a 20A circuit already exists for a welder or a compressor, and matching a heater to that can be the difference between a simple install and a panel upgrade.
Who This Heater Fits Best
It suits a one-car garage, a shed, a home gym, or a single bench zone in a larger shop where you want heat on a budget circuit. If your 240V service is limited, the lower amperage is the feature that makes it installable at all.
It is also a good second unit for a two-zone layout, where a 5000W in the far corner complements a larger unit at the main bay, which is the layout experienced shop owners describe in forum threads.
Where It Falls Short
Its 4.2 rating with 281 reviews puts it below the leaders in this group, and the review distribution shows a wider spread of critical feedback than the models above it. It is a competent small heater rather than a standout one.
It is also hardwired, so the no-electrician claim does not apply here. Only the 120V radiant model on this list is truly plug and play.

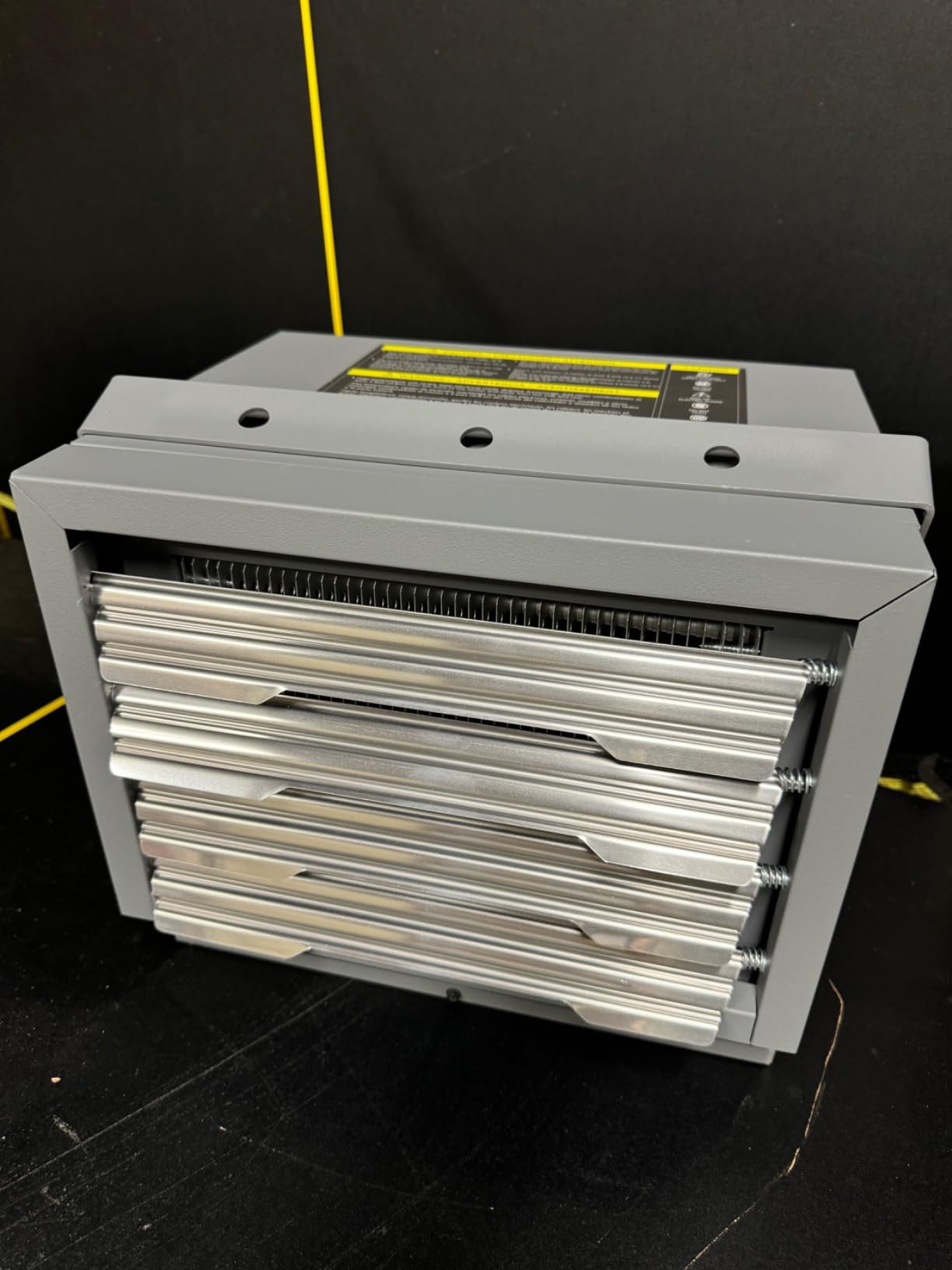

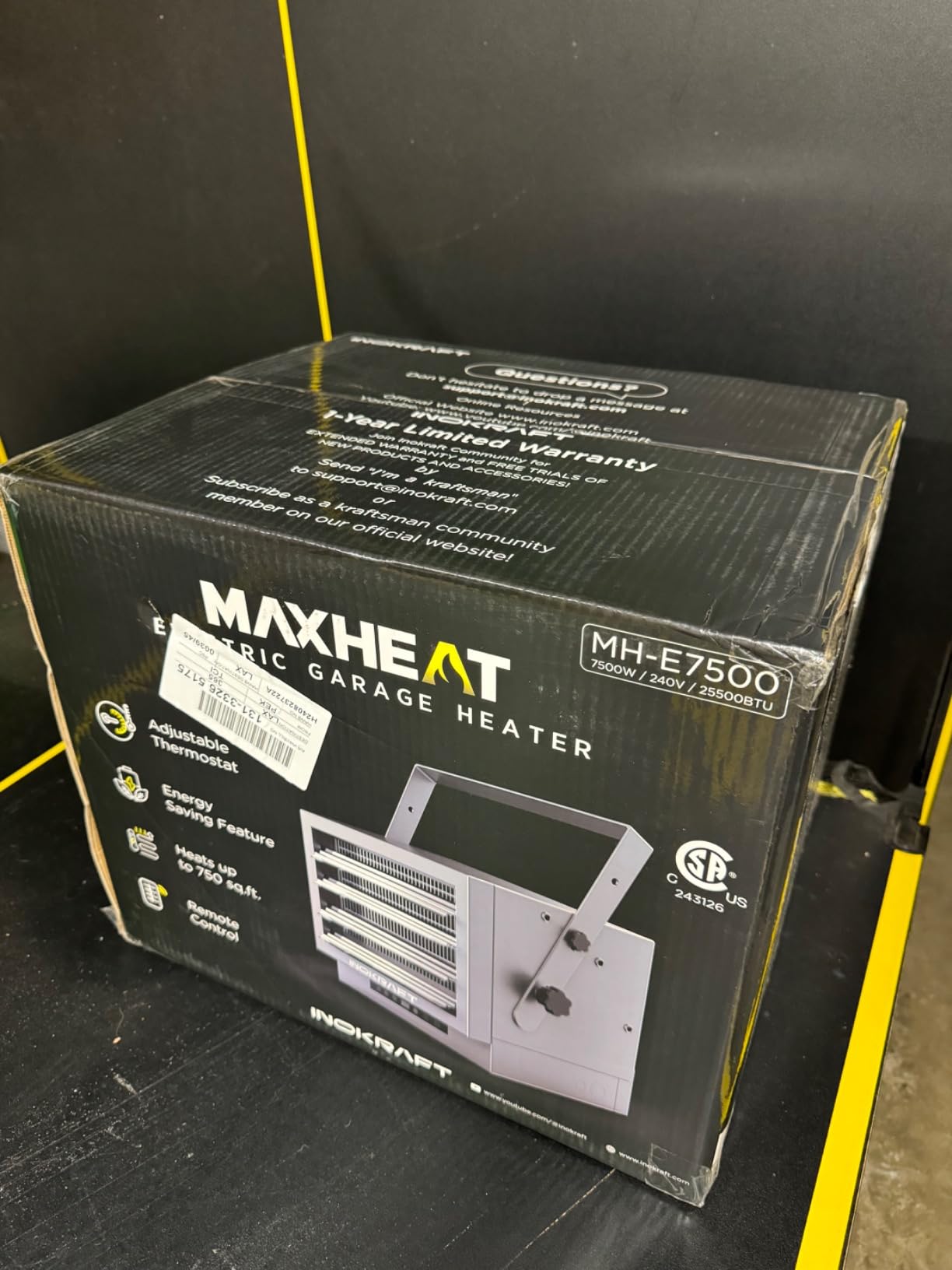

8. InoKraft 7500W 240V Ceiling-Mount Heater – Best for Long Timer Control
InoKraft 7500W Electric Garage Heater, 240V Ceiling-Mount, Hardwired
7500W 240V hardwired
750 sq ft coverage
65 dB operating noise
40-99F thermostat with 24-hour timer
Pros
- Four operating modes including fan-only for summer air circulation
- timer range runs 1 to 24 hours
- longer than the 12-hour windows on most rivals
- digital thermostat from 40F to 99F
- five installation angle adjustments plus flexible louvers
- automatic fan delay improves heat distribution after shutdown
Cons
- Hardwired version needs an electrician and includes no power cord
- 750 sq ft coverage is modest for 7500W of output
- stated 65 dB operating noise is the one figure we could confirm
- smallest review base in the roundup at 201 reviews
The InoKraft earns its place on control range. The thermostat runs from 40F to 99F and the timer runs 1 to 24 hours, which means you can set a full-day schedule rather than a 12-hour window that stops in the middle of a night shift.
It also has a fan-only mode, and that is more useful than it sounds. In spring and autumn you can move air through the shop to remove sawdust and dampness without running the elements, and a few workshop owners add one of these purely as a summer air circulator.
Five angle adjustments at install, plus flexible louvers, are the mounting features we like most. The automatic fan delay also runs the blower briefly after the elements shut off, which pushes remaining warm air into the space instead of leaving it sitting in the cabinet.
Noise is the trade-off. The stated operating level is 65 dB, and only the InoKraft in this group publishes a noise figure at all, so treat that number as the one hard data point available. Forum users of gas unit heaters complain far more about blower noise, so an electric cabinet at this level is a modest trade for silence elsewhere.
The 750 square foot coverage rating against 7500W is the other thing to think through. It is a conservative figure, but it means the unit is really aimed at a two-car garage rather than a large shop. For 1000 square feet and up, the 1250 square foot models are the better match.
With 201 reviews, this is the smallest base here, so long-term durability data is genuinely thin. The manufacturer offers a hardwired version, and a NEMA 14-50P plug-in variant exists for people who cannot hardwire, which is worth asking about if your panel is the obstacle.
Who This Heater Fits Best
It suits a two-car garage or a 600 to 750 square ft shop with a 240V circuit, especially if you want a full 24 hour timer and a thermostat wide enough to hold a freeze at 40F overnight and stop short of 99F in July.
It is also a strong pick as a summer air circulator, or as a second unit when a two-zone layout calls for matching controls across both zones.
Where It Falls Short
At 65 dB, and as the loudest figure we can confirm among the electric models here, noise is worth weighing in a shop where you need to hear a compressor. The 750 square foot rating also undercuts the 7500W headline number.
And the hardwired version means an electrician regardless. If the panel is the problem, look for the NEMA 14-50P variant before committing.
How Big a Ceiling Heater Do You Need?
Size a ceiling heater with the 10 watts per square foot rule for electric models, and with a 30 to 60 BTU per square foot range for combustion models. A single-car garage at roughly 250 square feet needs about 2500W, which is the bottom of what we would consider buying.
For a two-car garage around 450 square feet, 5000W is the sensible target and 7500W gives you meaningful headroom for a hard freeze. A three-car garage near 650 square feet points to 7500W, and a shop of 1000 square feet or more is where combustion heaters start to make more financial sense than resistance heat.
Two rules of thumb from working shops: size for the coldest week of your year rather than the average, and count only the floor area you actually want warm. Heating 1000 square feet when you spend your time in a 200 square ft corner is how owners end up with an electric bill they regret.
Electric vs Propane vs Natural Gas for a Workshop
Electric is the default for most home workshops because the install is one circuit, there is no venting, and there is no combustion air or carbon monoxide question to answer. It produces no moisture, which matters in a building holding bare steel, wood stock, and finished work.
Propane and natural gas deliver far more heat per unit of fuel and are the only sensible option for a 1000 square ft or larger shop. The trade is a gas line, a vent, an oxygen-depletion and flame-safety shutoff chain, and the permanent addition of water vapor to your building air.
Running cost follows the same logic. Electric is billed per kilowatt hour and a 7500W unit at full output is the largest single load most people add to a panel. Gas units bill per therm and deliver roughly the same heat for a fraction of the energy, but you pay for the line, the vent, and the installation once, up front.
One safety point is worth stating plainly. Propane and natural gas ceiling heaters should not be run in a garage with the door cracked open, which is exactly what you want during a workday with a vehicle running. An electric unit does not have that problem.
Fan-Forced vs Radiant: Which Heat Delivery Fits Your Bench
Fan-forced electric units pull air through a heating element and blow it down through adjustable louvers, warming the entire air volume. That is what you want when you need the whole room usable, and it is the right choice for a general workshop.
Radiant infrared and quartz units skip the fan and emit heat that warms people and surfaces in line of sight. They are quiet, they heat you directly, and they do almost nothing to the air. In a garage gym or over a single workbench that is a feature, not a flaw.
A good workshop uses both. A 240V fan-forced unit for the room, plus a 1500W radiant unit over the bench where you stand still for hours. If you are building a related zone plan for the rest of your space, our guide to flip chart easels for workshops covers the same zone thinking for layout.
How to Mount a Ceiling Garage Heater Safely
Hang the unit on a joist or a joist hanger, not on a drywall screw. A 20 pound cabinet swinging on a single lag bolt into panel is the single most common mounting failure we hear about, and the fix is cheap: a rated joist hanger, two structural screws into the wood, and a cross brace if the bracket allows.
Keep the required clearance from combustibles. The gas model here specifies a minimum 10 foot ceiling height and 8 feet of clearance from the base of the heater down to the floor. For the electric cabinets, follow the clearance printed in the manual and mount away from exposed insulation, and keep the area above the unit clear of stored material.
Give every hardwired 240V model its own properly sized circuit per the National Electric Code, with no extension cord and no adapter. The 5000W models draw around 21A and the 7500W models around 31A, so breaker and conductor sizing are not interchangeable between them.
Aim the discharge away from the position you work at. Ceiling heaters blasting papers and cold drafts on the back of your neck is one of the most consistent complaints in workshop forums, and tilting the louvers or setting the mount angle is usually enough to fix it.
Then deal with stratification, because it is the reason ceiling heaters disappoint people. Warm air leaves the unit at head height and stacks at the joists. A floor-level circulation fan to push warm air back down, a second lower unit in the far corner, and a target of heating the air you occupy rather than the air above it are the three mitigations that work.
Finally, respect what a garage holds. Solvents, paint thinners, spray finishes, and piles of sawdust are exactly the materials a heater should be kept away from, and in a woodshop the sawdust issue applies to gas models especially. Check the intake on a schedule, and if you generate heavy dust, mount the heater outside the dust stream.
Before you commit to a large spend, it is worth checking whether the space already needs other upgrades. If you are reworking storage at the same time, our garage storage cabinet roundup and smart garage camera picks are the two we get asked about most alongside heating.
When a Ceiling Heater Is the Wrong Choice
If your workshop is 1000 square feet or larger, regularly heated, and you already have or can get a gas line, a ducted furnace with ceiling diffusers solves the cold floor problem that no unit heater solves. Forum owners who switched from a unit heater to a conventional ceiling-hung furnace with ductwork report that the hot and cold spots and the noise both went away.
A ducted mini-split is the other option worth pricing. It heats quietly, it heats the floor because the air comes out low, and over many seasons it can beat a resistance heater on running cost. Neither is a simple weekend install like a ceiling unit.
The honest summary: a ceiling mounted unit heater is the right answer for a garage up to about 800 square feet, and for larger spaces only when the budget is the constraint. Beyond that, a ducted system is the better long-term purchase.
Frequently Asked Questions
What is the best ceiling heater for a garage?
For most two-car garages the Dr. Infrared DR-975 7500W 240V hardwired unit heater is the strongest overall pick, because it switches between 4700W and 7500W and comes with a remote thermostat. The Comfort Zone CZ220BK 5000W is the better value choice on a lighter 20.9A circuit, and the Mr. Heater 50000 BTU forced-air unit heater is the answer for a 1000 square ft or larger shop with a gas line.
How high should I mount a ceiling mounted garage heater?
Mount it to a joist or a rated joist hanger, not to a drywall screw, and follow the clearance printed in the manual. The gas model in this roundup requires a minimum 10 foot ceiling height and 8 feet of clearance from the base of the heater down to the floor. For electric cabinet units, hang the box below the joists with structural fasteners, keep the space above the unit clear of storage, and aim the louvers away from your work position.
Do ceiling mounted garage heaters need a dedicated circuit?
Yes. Every 240V hardwired model in this roundup expects its own properly sized circuit installed per the National Electric Code. The 5000W models draw roughly 21A and the 7500W models roughly 31A, so conductor and breaker sizing are not interchangeable. Never use an extension cord or adapter, and have a qualified electrician handle the panel work.
Should garage heaters be on the floor or ceiling?
Ceiling is better in a workshop, because it keeps floor and bench space free for vehicles, stands, and materials, and it pushes warm air downward through the occupied zone. Floor units are easier to move and cheaper, but they occupy working space and can be knocked. Whichever you choose, expect warm air to layer at the ceiling, and add a floor circulation fan to push it back down.
Is it cheaper to heat a garage with propane or electric?
For a small garage under 800 square feet, electric is usually cheaper once installation is counted, because a gas ceiling heater needs a licensed gas line and a vent kit in addition to the appliance. For a 1000 square ft or larger shop that is heated regularly, propane or natural gas delivers more heat per unit of fuel and usually wins on running cost. Remember that combustion heat also adds moisture to the building.
Which Ceiling Mounted Garage Heater Should You Buy?
For a two-car garage or a shop under about 800 square feet with a 240V circuit, take the Dr. Infrared DR-975 as our choice of the best ceiling mounted garage heater for workshops, because the dual wattage and remote thermostat give you more control than anything else in the electric group at that size.
If your panel is limited or the budget is tight, the Comfort Zone CZ220BK at 5000W and 20.9A is the smarter buy, and the CZ230ERBK is the upgrade when you want scheduling and a 1250 square ft reach. Over 1000 square feet with a gas line available, the Mr. Heater 50000 BTU is the honest answer, despite the vent and install cost.
Whatever you choose, mount it on a joist, size it for your coldest week, and plan for a circulation fan. Those three steps decide whether the heater actually warms the space you work in. For the rest of your workshop setup, our wall mounted pull up bar guide and bathroom wall heater picks cover the adjacent spaces in a home build.
