If you have ever run a dead 120V circuit and gotten nothing sensible on your multimeter, you already know the problem. A multimeter reads present voltage and continuity. It cannot tell you whether the insulation on that circuit has quietly rotted away from moisture inside the wall. That is a job for the best insulation resistance testers for electricians, the instruments tradespeople call meggers or megohmmeters.
We spent weeks with these ten instruments on motors, feeders, panelboards and heating cable runs, comparing test voltage, resistance range, guard terminal behaviour, discharge behaviour and the sort of details that only show up after the twentieth reading of the day. What follows is a straight electrician-first roundup, with a clear verdict at the end of every section and no hedging.
We also answer the questions the forums keep asking: whether a megger is the same thing as an insulation tester, what a passing reading actually looks like, and whether the expensive brands are worth the premium or whether a mid-range instrument does the same unit of work. If your kit is still short on tools, our composite toe work boots for electricians guide covers the other half of the job-site equation.
Table of Contents
Top 3 Picks Best Insulation Resistance Testers for Electricians in 2026
Supco M500
- 500V test voltage
- Up to 1000 MOhm range
- Magnetic lead tips
- Bright LED zone scale
Klein Tools ET600
- 125V/250V/500V/1000V
- Up to 4000 MOhm
- Auto-ranging TRMS multimeter
- Backlit bar graph display
Fluke 1507
- Five voltages 50V to 1000V
- NIST traceable calibration
- Remote test probe
- Live circuit detection
Quick Overview: All 10 Insulation Testers Compared
| Product | Specifications | Action |
|---|---|---|
| Supco M500 |
|
Check Latest Price |
| Klein Tools ET600 |
|
Check Latest Price |
| Fluke 1507 |
|
Check Latest Price |
 Fluke 1587 FC |
|
Check Latest Price |
 Fluke 1503 |
|
Check Latest Price |
 UNI-T UT501A |
|
Check Latest Price |
 KAIWEETS KE2500 |
|
Check Latest Price |
 KAIWEETS KE1000 |
|
Check Latest Price |
 BTMETER VC60B |
|
Check Latest Price |

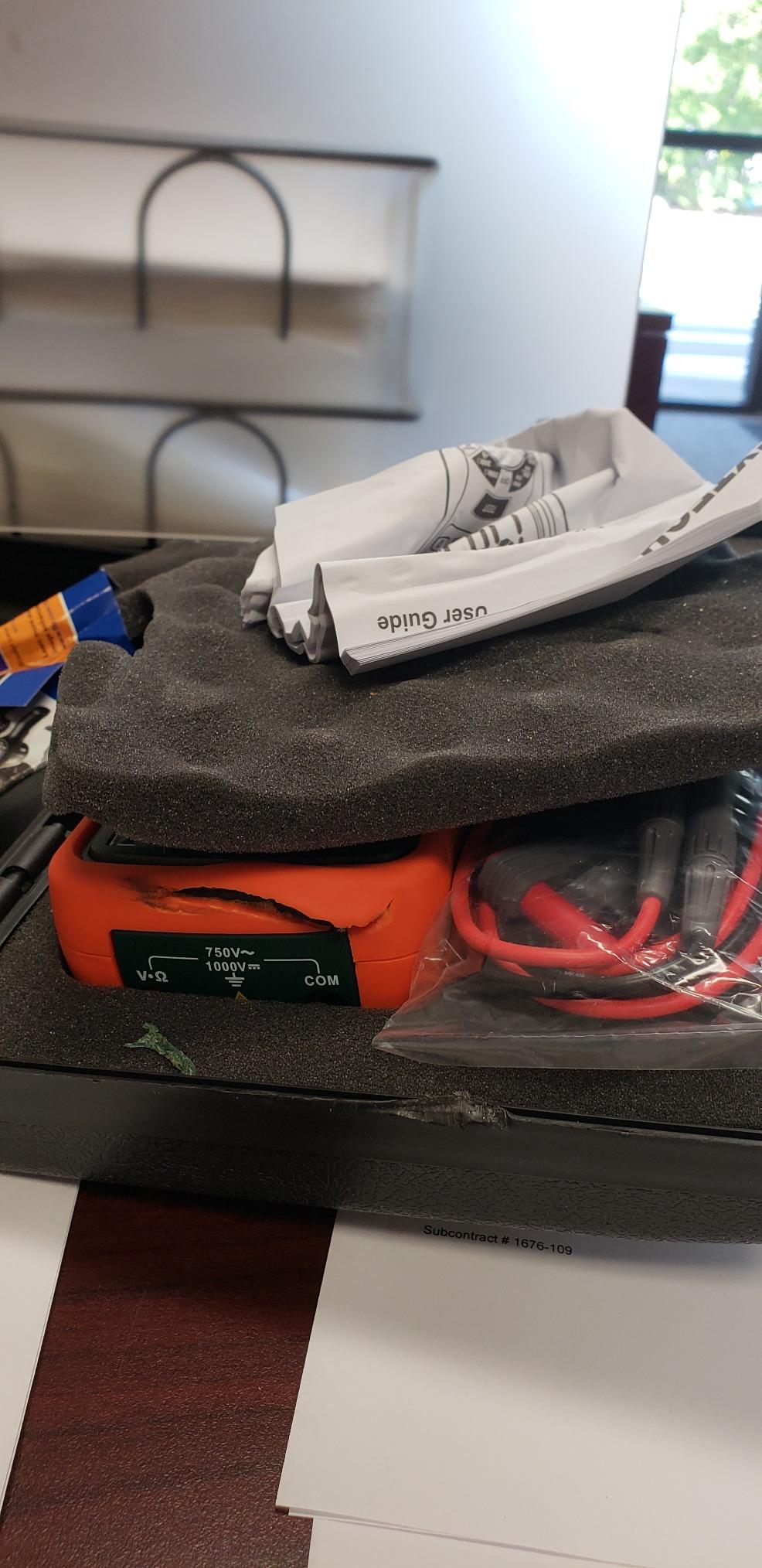

 Extech 380260 |
|
Check Latest Price |

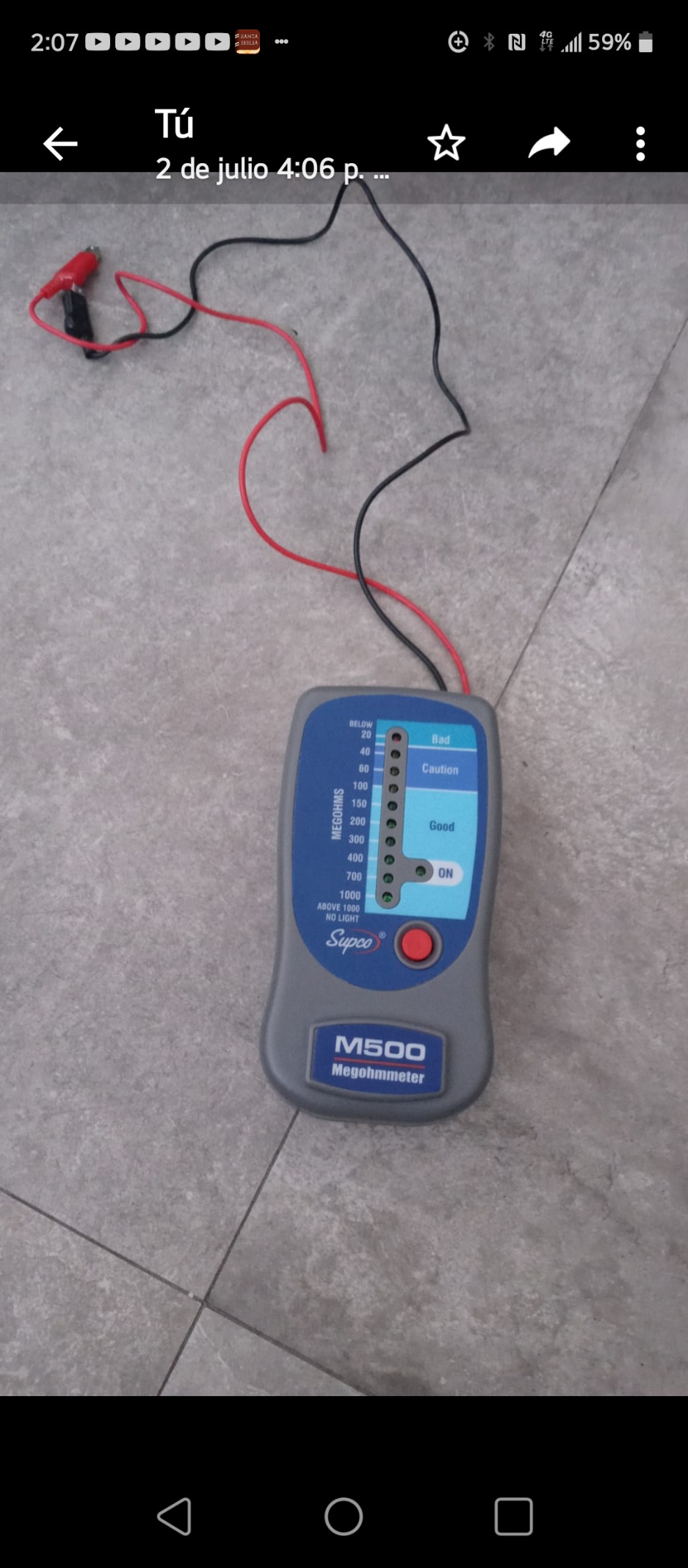

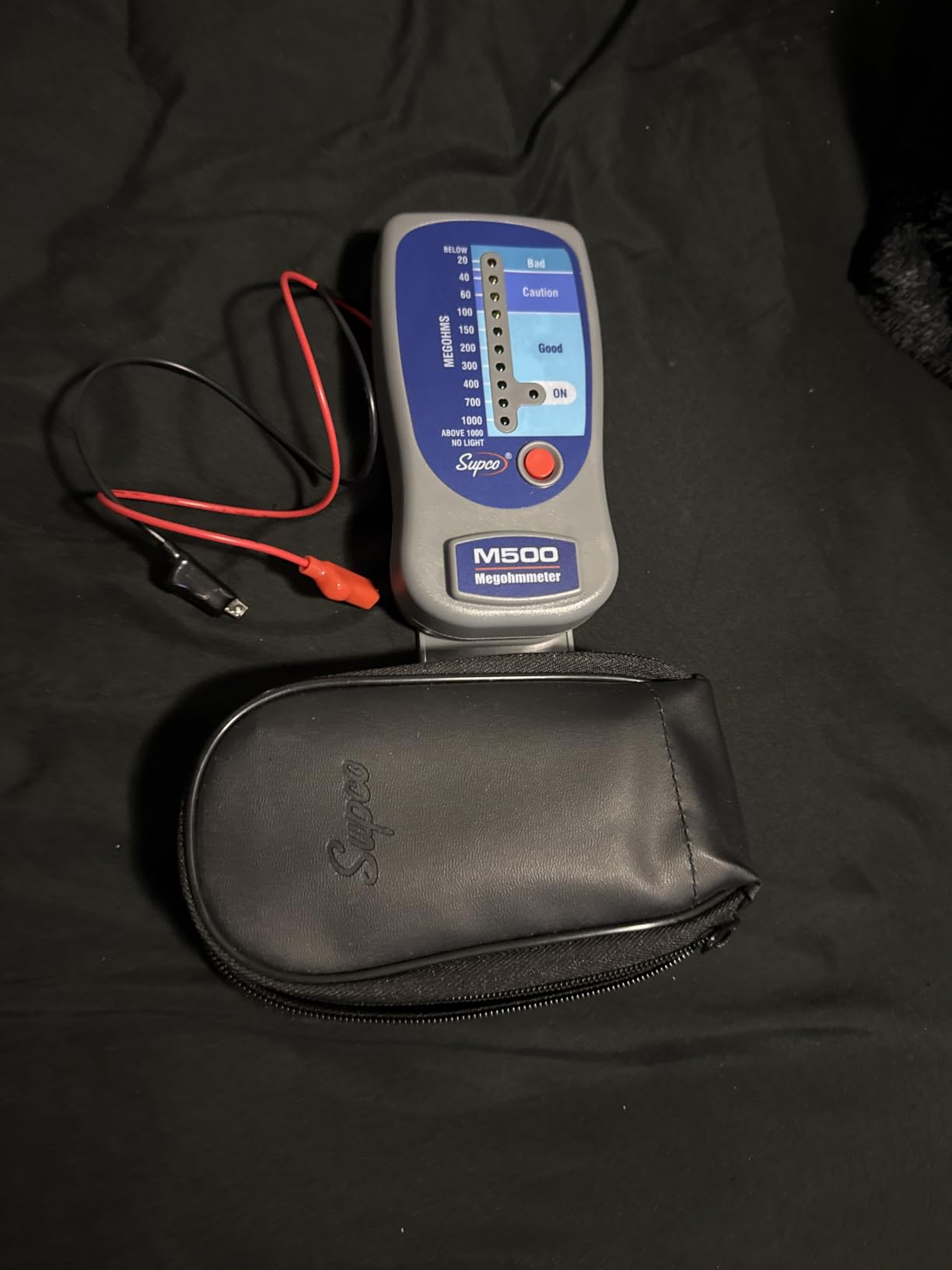

1. Supco M500 – The One Most Electricians Should Buy First
Supco M500 Electronic Megohmmeter, 0 to 1000 Megohms
500V test voltage
0 to 1000 megohms
Magnetic lead tips
9.3 x 6 x 1.8 inches
Pros
- Compact enough to live in a toolbag
- Magnetic ends clip on fast and stay put
- Bright LED display with a clear zone scale
- Auto-discharge after the test
- Rugged rubberised housing
Cons
- Short folding leads limit reach in tight cabinets
- Scale-based readout instead of a full digital value
- C-cell batteries are awkward to source on the job
The Supco M500 is the instrument we keep coming back to. It is the simplest tester in this roundup, and that is exactly why it works. There is one button, one test voltage, and a readout that tells you pass or fail without interpretation. On a residential or light commercial call you want that, not a menu system.
At 9.3 by 6 by 1.8 inches it disappears into a toolbag, and the magnetic ends on the leads let you clip onto a screw terminal or a bus bar with one hand. That single design decision removes more risk than any feature we tested. There is no fiddling with probe tips near a terminal block.
It measures from zero up to 1000 megohms at 500V, which covers everything from 120V circuits to 480V motor windings, hermetic compressors and control transformers. The LED readout uses a zone scale rather than a raw number, so you read good, fair or poor instead of parsing digits. For a quick pass or fail that is arguably better than a precise number you do not trust.
The one behaviour we genuinely rely on is the automatic discharge once the test ends. On a 500V test the capacitance in a long cable run holds real charge, and not knowing whether it has dissipated is how people get surprised. The M500 handles it for you.
One r/AusElectricians poster described the recurring market problem plainly, saying he was looking to get a megger because Fluke was just too expensive and he wanted something mid range. That is exactly the gap this fills.
When the M500 is the right call
It is right when you are commissioning residential and light commercial work, servicing HVAC equipment, checking motors and compressors, or doing periodic checks on feeders and small panels. If your tests are spot readings and pass or fail judgements, the zone scale answers the question faster than any PI calculator would.
It is also the safest thing to hand an apprentice. Automatic discharge, a single test voltage and no configuration options means almost nothing can go wrong. Our team has used it in wet crawlspaces and hot attics without a single complaint about build quality.
When the M500 is the wrong call
It is wrong if you need PI or DAR for a maintenance report, because the zone scale gives you no time-resistance data at all. It is also wrong for cables and equipment above 500V, since 500V is the only test voltage it applies.
The folding leads are short. In a deep switchgear lineup you will end up using the clamp style of the probe tip rather than a clean clip, and in a tight cabinet the reach is genuinely awkward. C-cell batteries are also less common in a toolbag than AA or a recharge pack.

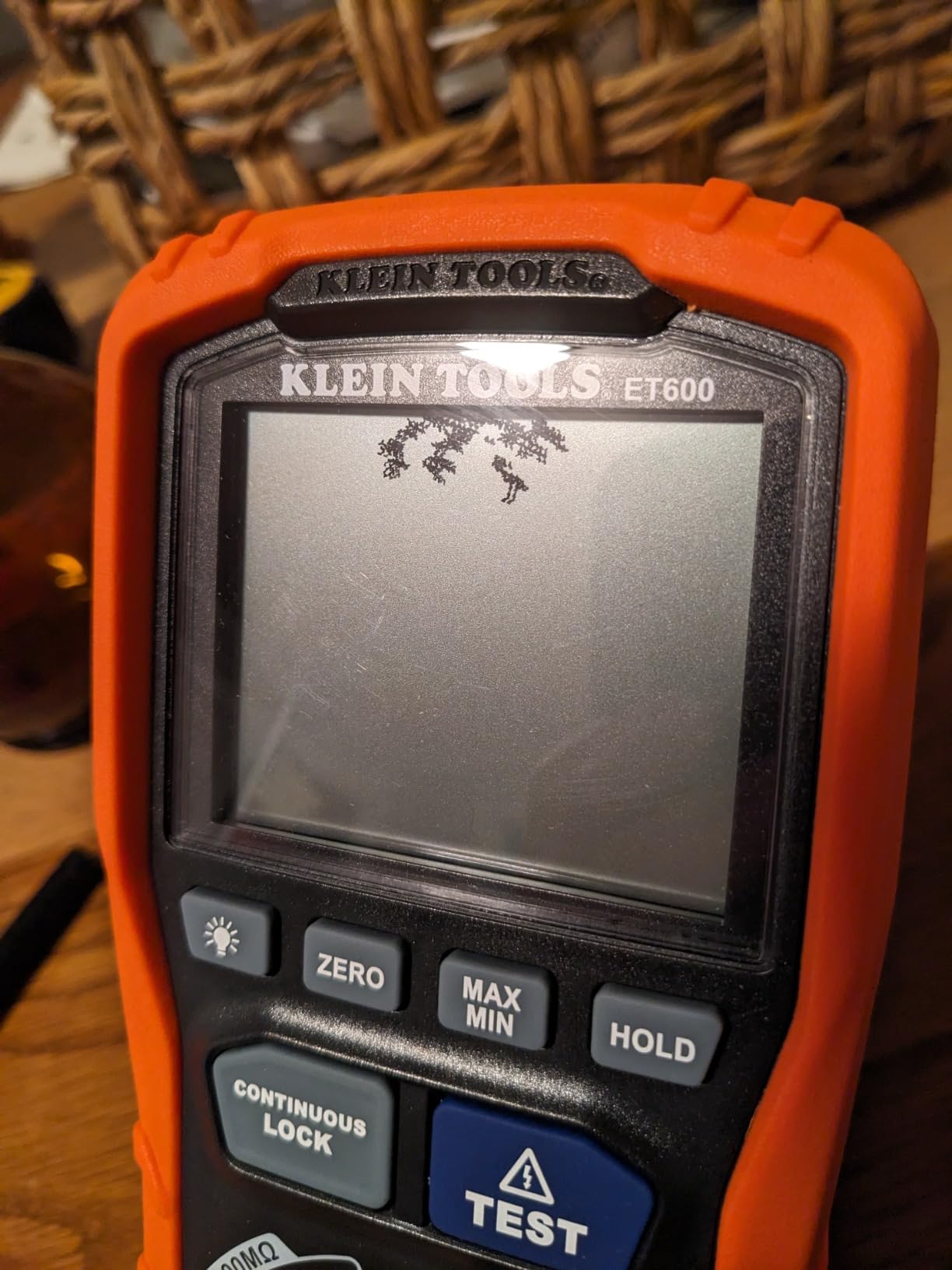

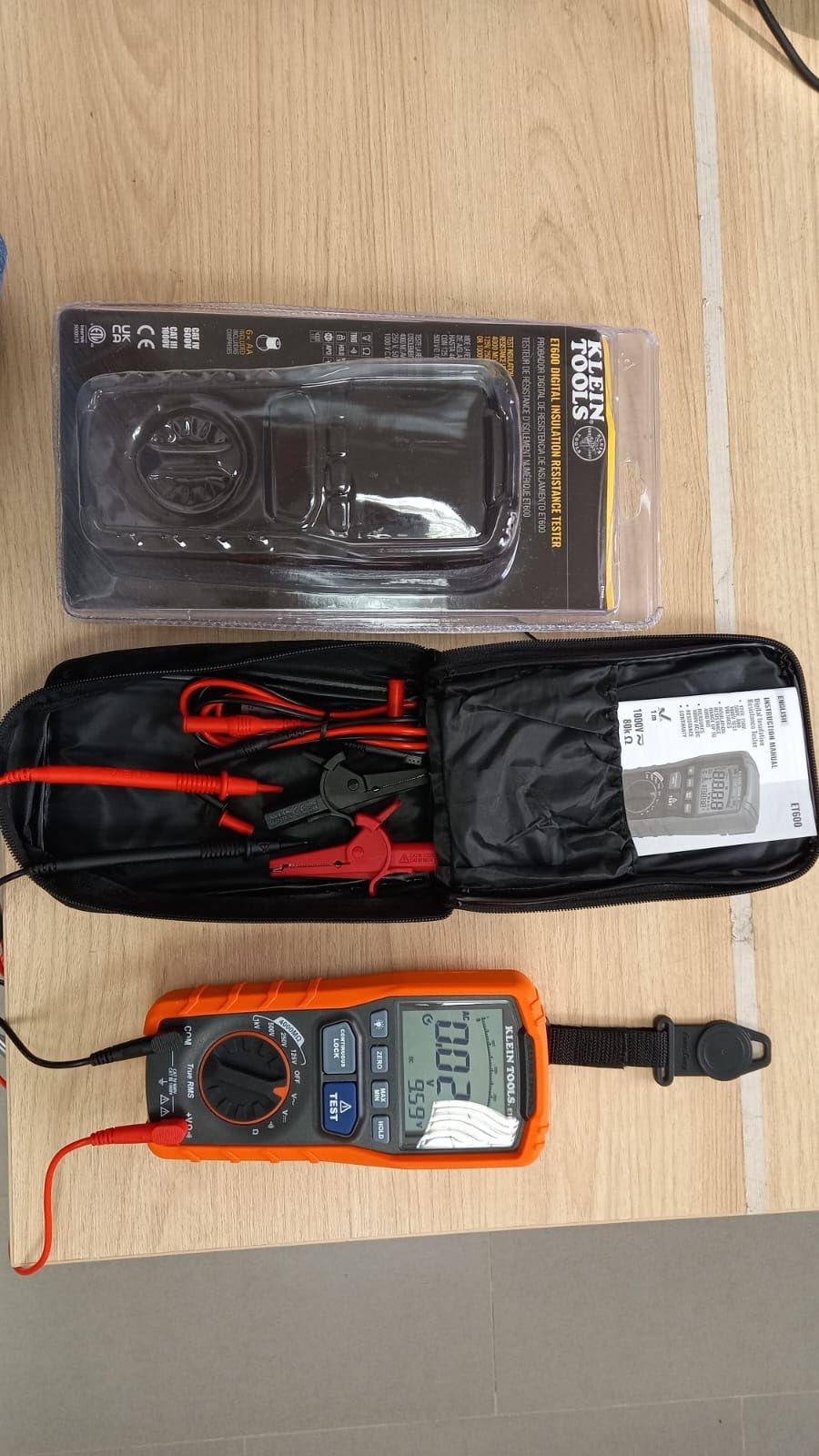

2. Klein Tools ET600 – Top Rated Two-in-One for Working Electricians
Klein Tools ET600 Multimeter, Megohmmeter Insulation Tester, 4000 Ohms Resistance, 125V/250V/500V/1000V, Auto-Ranging TRMS Multimeter
125V/250V/500V/1000V test
4000 MOhm insulation range
Auto-ranging TRMS
10 x 2 x 4.5 inches
Pros
- Full TRMS multimeter plus a 4000 MOhm insulation tester
- Four selectable test voltages cover most field work
- Rugged drop-safe housing with secure leads
- Bar graph
- hold
- max/min and auto power-off
- High voltage warning icon and audible alarm
Cons
- 4000-count display is coarser than lab grade meters
- Bulky chassis is awkward in confined spaces
- No calibration certificate included
The ET600 is the one we recommend to apprentices moving up and to residential contractors who need a meter and a megger in the same case. You carry one instrument instead of two, and the multimeter half is a genuine auto-ranging true RMS meter rather than a token function.
Four test voltages, 125V through 1000V, is a better spread than most of the budget tier, which usually gives you three. That 125V step matters, because it is the correct voltage for low-voltage control circuits, thermostat wiring and low-energy circuits where 500V can stress sensitive electronics unnecessarily.
Users cross-check its insulation readings against Fluke references and report consistent results, which is what we found too. The included leads are CAT III and CAT IV safety rated, and the heavy-duty alligator clip leads are part of the box. For a company standard issue instrument that gets handed around, that combination is worth more than a slightly finer display.
The safety design is genuinely good. A high voltage icon, an audible alarm, a test and lock button pair, and an auto power-off that stops a flat battery from being discovered on Monday after a Friday job. Electricians and HVAC technicians treat this as the go-to budget megger for exactly that reason, and it is easy to train new staff on.
A word of honesty about the value claim. The mikeholt forum has a fair criticism of very cheap testers, with one user noting a cheap unit is of no use for long term repeated insulation resistance testing. The ET600 is not that. It is ETL listed, it comes from a brand with a service network, and the leads seat properly. That is the difference we are paying for.
Why electricians keep buying it
Because the multimeter function means one tool covers voltage, resistance, continuity and insulation. On a service call that is the difference between walking on and walking back to the van. The bar graph and backlit screen read well in a dark panelboard or in direct sun.
For a company buying in fives, this is the easy decision. It is the model we hand to new hires, and once they have used it they stop asking to borrow somebody else’s meter.
Where it falls short
At 4000 counts the display resolution is coarser than the meters you would use for precision electronics work, so do not reach for it when you need to resolve a small voltage difference. It also weighs in at a chunky 1.4 pounds, and holding that in one hand inside a confined cabinet while clipping leads is the main ergonomic complaint we heard.
There is no calibration certificate in the box. If you run a quality system that requires documented traceability for every instrument, factor that into your paperwork.
3. Fluke 1507 – Best for Industrial Motors, Feeders and Commissioning
Fluke 1507 Digital Megohmmeter Resistance Tester for Advanced Industrial and Electrical Testing, Test Voltages: 50V, 100V, 250V, 500V, 1000V
50V/100V/250V/500V/1000V
NIST traceable calibration
Remote test probe
500 g
Pros
- Ships with a NIST traceable calibration certificate
- Five test voltages from 50V to 1000V
- Remote probe simplifies repetitive and hard-to-reach testing
- Blocks the test if voltage above 30V is present
- Large backlit display
Cons
- Batteries drain quickly with repeated insulation tests
- No hard protective case at this tier
- Less feature rich than the 1587 model
- Intimidating for people new to megohmmeters
When a question comes from a plant, the 1507 is the answer. It arrives calibrated with a NIST traceable certificate and data, which is the single most useful thing in the box if you are working inside a maintenance program that requires documented traceability for every reading you take.
Five test voltages from 50V up to 1000V cover the full range from sensitive electronics to 480V equipment. The 50V and 100V steps let you test control circuits and electronic equipment without overstressing it, and 1000V is the right voltage for a 480V motor winding or feeder.
The remote test probe is what we ended up using for everything. Once you fit it, you can run a test without keeping a hand on the instrument, which is safer around live terminals and much faster on repetitive motor testing. Electricians mentioned on electriciansforums.net value hands-free automatic testing for exactly this reason.
Safety features that matter on plant work
Live circuit detection refuses to run an insulation test when voltage above 30V is present. On a motor that has not been fully locked out, or a feeder where someone is working nearby, that interlock is the difference between an insurance claim and a story at the safety meeting.
The display is large and backlit, which sounds ordinary until you are reading it in a switchgear room with the door closed. It reads cleanly at an angle, which matters more than it sounds when the tester is clipped to a bus bar at eye level.
Where the 1507 frustrates people
Battery drain is the most common complaint. Running repeated insulation tests at 1000V is hard on alkaline cells, and there is no rechargeable pack option. Plan on swapping batteries mid-shift rather than at the end of it.
There is no hard protective case in the box, and the instrument is still intimidating to someone opening a megohmmeter for the first time. The rotary function switch and the menu logic take a session to learn. It is a tool that rewards a second afternoon.

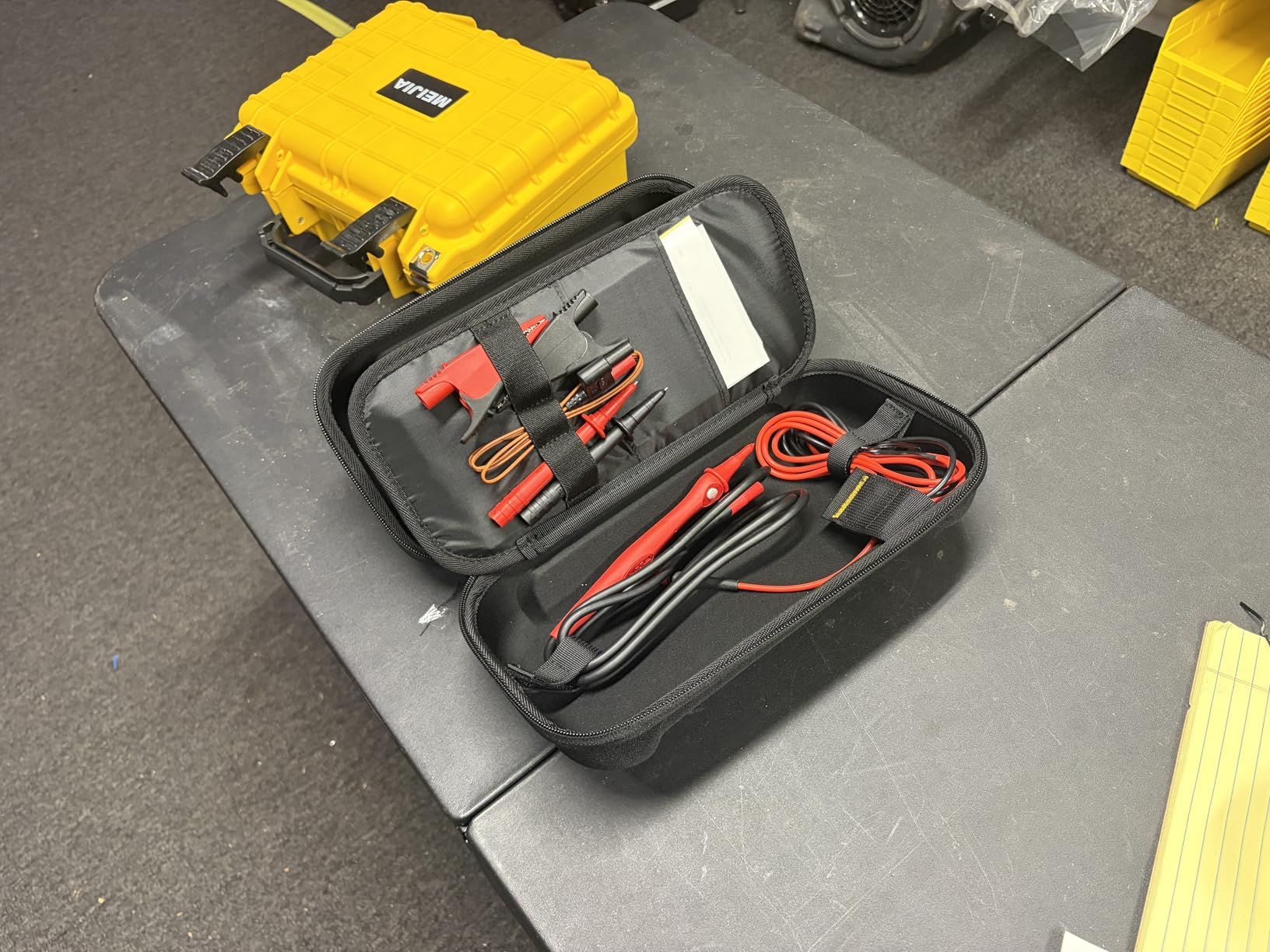

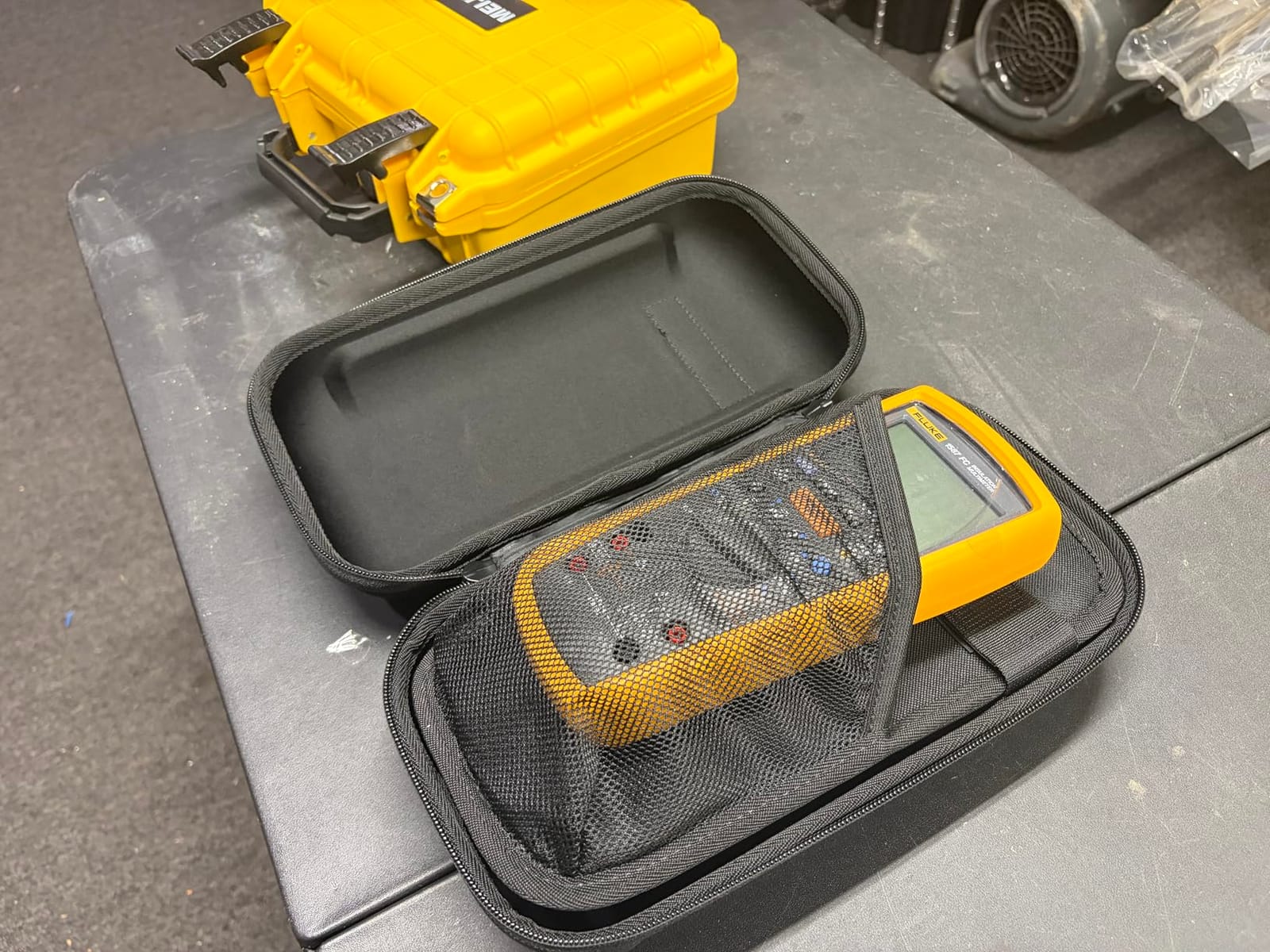

4. Fluke 1587 FC – The Full Instrumentation and Reporting Package
Fluke – FLUKE-1587 FC FLUKE 1587 FC 2-in-1 Insulation Multimeter
Two-in-one insulation multimeter
PI and DAR with Trend It graphs
Wireless data logging
Three-year warranty
Pros
- Complete digital multimeter and insulation tester in one body
- PI and DAR with Trend It graphs speed up fault finding
- Fluke Connect app removes transcription errors
- Temperature compensation through the app for accurate baselines
- True RMS holds up on VFD and non-linear loads
- Three-year manufacturer warranty
Cons
- Heaviest unit we tested at 1645 g
- Bulky and priced for professionals
- No built-in amp clamp for current measurement
- Runs warm during extended insulation tests
The 1587 FC is the instrument for the technician who writes reports rather than just readings. Everything the 1507 does it does, and then it logs the results wirelessly to a phone through the Fluke Connect app, with temperature compensation applied so your baseline comparisons stay valid through a seasonal change.
PI and DAR are calculated on the instrument and drawn as Trend It graphs. That is the feature that changes daily work. A single number tells you where you are, but a time-resistance graph tells you what kind of fault you are looking at, and whether it is getting worse or improving.
The memory storage matters more than most people expect. Writing down twenty motor readings at the end of a shift is exactly how transposition errors happen, and this removes that step entirely. Maintenance and industrial electricians rate it as the benchmark for insulation diagnostics for that reason.
On the electrical side it is a full true RMS multimeter, and it holds accuracy on VFD and non-linear loads where cheaper meters fall apart. The rotary selector and the lead seat feel precise and durable in the field. On a testguy forum thread the recurring recommendation for a combined instrument is a Fluke 1587 paired with a clamp meter, which is still the advice we would give today.
One caution worth repeating from our own testing. Never connect this to a PLC, a VSD, a UPS or a battery charger without isolating it first. A 1000V test will destroy solid-state electronics instantly, and the manufacturer warnings are not conservative.
Who should spend the money here
A maintenance technician testing motors and switchgear weekly, or a contractor doing commissioning paperwork for a client, will recover the cost in saved report time alone. The three-year warranty also removes the anxiety of carrying a premium tool into rough environments.
If your customer expects a documented baseline, this is the instrument that produces one without extra software on a laptop. That is the real reason to buy it.
Who should not
At 1645 g it is the heaviest tester in this roundup by a wide margin, and it is bulky. If you are climbing ladders and working in confined panels all day, the weight adds up. It also runs warm during extended insulation tests, which is worth knowing before you hold it against your thigh for a long cable run.
There is no built-in amp clamp, so current measurement still means carrying a second instrument. And the price point is aimed at professionals, so an occasional residential user is paying for capability they will not use.
5. Fluke 1503 – Best for Leakage Current, Capacitance and Stored Reports
Fluke 1503 Insulation Resistance Tester
Leakage current to 2 mA
Capacitance to 20 microfarads
Timed tests to 99 minutes
CAT IV 600V and CAT III 1000V
Pros
- Measures leakage current and capacitance as well as resistance
- Automatic PI and DAR calculation
- Timed tests up to 99 minutes with 99 stored results
- PC upload for reporting
- Warns when voltage above 30V is present
Cons
- Older design without wireless app logging
- Bulkier and heavier than compact budget megohmmeters
The 1503 is the odd one out in the Fluke range and it earns its place. It is the only tester here that measures leakage current to 2 milliamps and capacitance to 20 microfarads in the same pass, which makes it the right tool when you are working on motor windings, capacitor banks and equipment where a resistance number alone is not enough.
It performs timed tests up to 99 minutes and stores up to 99 results, which can be uploaded to a PC. That is a paper trail rather than a wireless one, and for anyone working to a written commissioning procedure that older workflow is perfectly serviceable.
It calculates PI and DAR automatically, and the safety ratings are the strongest in the Fluke line for the money: CAT IV to 600V and CAT III to 1000V, meeting EN 61010-1 and 61557. It measures voltage to 600V and warns you when more than 30V is present before you start.
Where it beats its newer siblings
Leakage current and capacitance in one instrument is a real capability, not a checkbox. When you are chasing a motor that trips under load or a capacitor bank that is drifting, knowing whether the problem is resistive or reactive saves an afternoon of blind testing.
It is also lighter in the hand than the 1587 FC by a very wide margin, at 500 g, and it shares that weight with the 1507. For a full shift of panel work, that difference is felt.
Where it falls behind
There is no wireless app. You are plugging into a PC to move readings off the instrument, and there is no temperature compensation, so your baseline comparisons across seasons are less reliable than the 1587 FC would give you.
It is also the older design physically, and it is bulkier and heavier than the compact budget megohmmeters. With 82 reviews the user base is small, so there is less field feedback circulating about it than about the other models here.

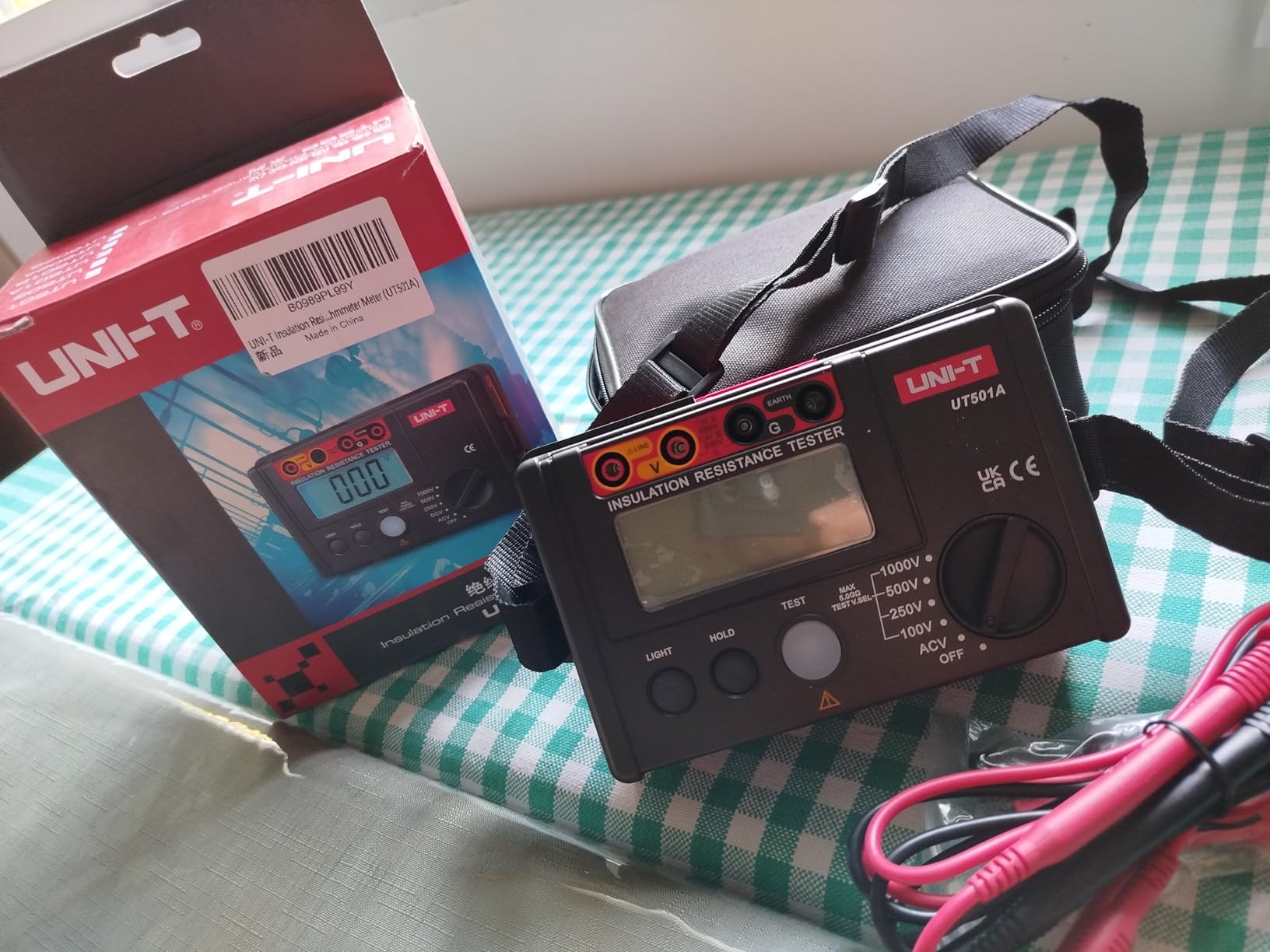

6. UNI-T UT501A – Best Starter Tester for Apprentices and Trainees
UNI-T 1000V Megohmmeter Insulation Tester, Ground Resistance Meter
0 to 5.5 GOhm range
AC 100V/250V/500V test voltage
5.91 x 3.94 x 2.8 inches
CAT III 1000V and CAT IV 600V
Pros
- Measures insulation resistance and AC voltage in one unit
- Automatic measurement with low battery indication
- Backlit LCD with alarm light and buzzer
- Compact enough for a small toolbag
- Six month warranty with responsive support
Cons
- No DAR or PI calculation for maintenance reports
- Basic build compared with Fluke and Klein units
- Compact screen limits readability of detailed results
The UT501A is the instrument we hand to an apprentice in week one. It is small, it is simple, and it measures to 5.5 gigaohms at 100V, 250V and 500V test voltages, which covers residential circuits, control wiring and small motors without any configuration.
Automatic measurement is the feature that matters most here. You clip on, press test, and read the result. No test and lock buttons, no menu, nothing to get wrong. Backlighting, a low battery indicator, an alarm light and a buzzer are all there, which are exactly the things you want when the job is dark and cramped.
It is rated CAT III 1000V and CAT IV 600V, which is the honest safety class for this instrument and matches the Klein at a fraction of the outlay. The build is basic compared with Fluke and Klein, and at 500 g it is light in the hand for long testing sessions.
Buyers looking for an inexpensive entry-level megohmmeter rate the accuracy positively, and the warranty runs six months with technical support that answers within a day. That is a meaningful difference for a first instrument, because a dead meter on day three is a bad lesson.
Why buy this one first
Because the cost of a wrong first lesson is high. Someone who has learned what a healthy reading looks like on a simple instrument will understand the physics behind a 1000V test later. Buying a feature-rich meter with PI curves for an apprentice is buying complexity before understanding.
It also handles transformers, electric machines, cables, switches and appliances, so it is not a toy limited to domestic circuits.
Where it runs out
There is no DAR or PI calculation, which rules it out for maintenance trending and for any NETA style report that requires a polarization index. If you plan to grow into condition-based maintenance, this is a stepping stone rather than a destination.
The screen is compact, so detailed results are harder to read than on a larger display, and the basic housing does not survive the same abuse as the rubberised Klein. Reviewers also report a 63 percent five-star share, which is solid but not flawless. Treat it as a training and light-duty instrument.

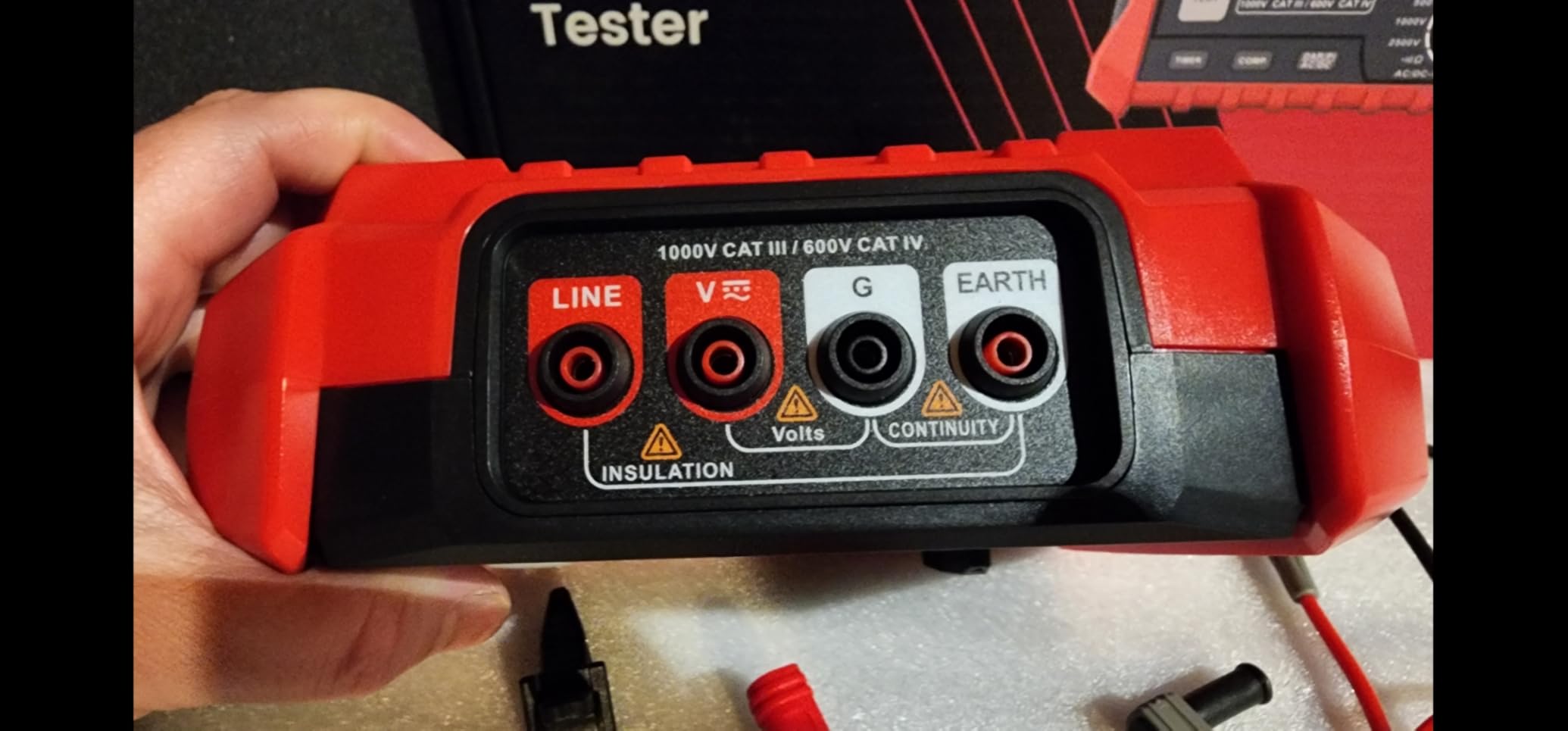

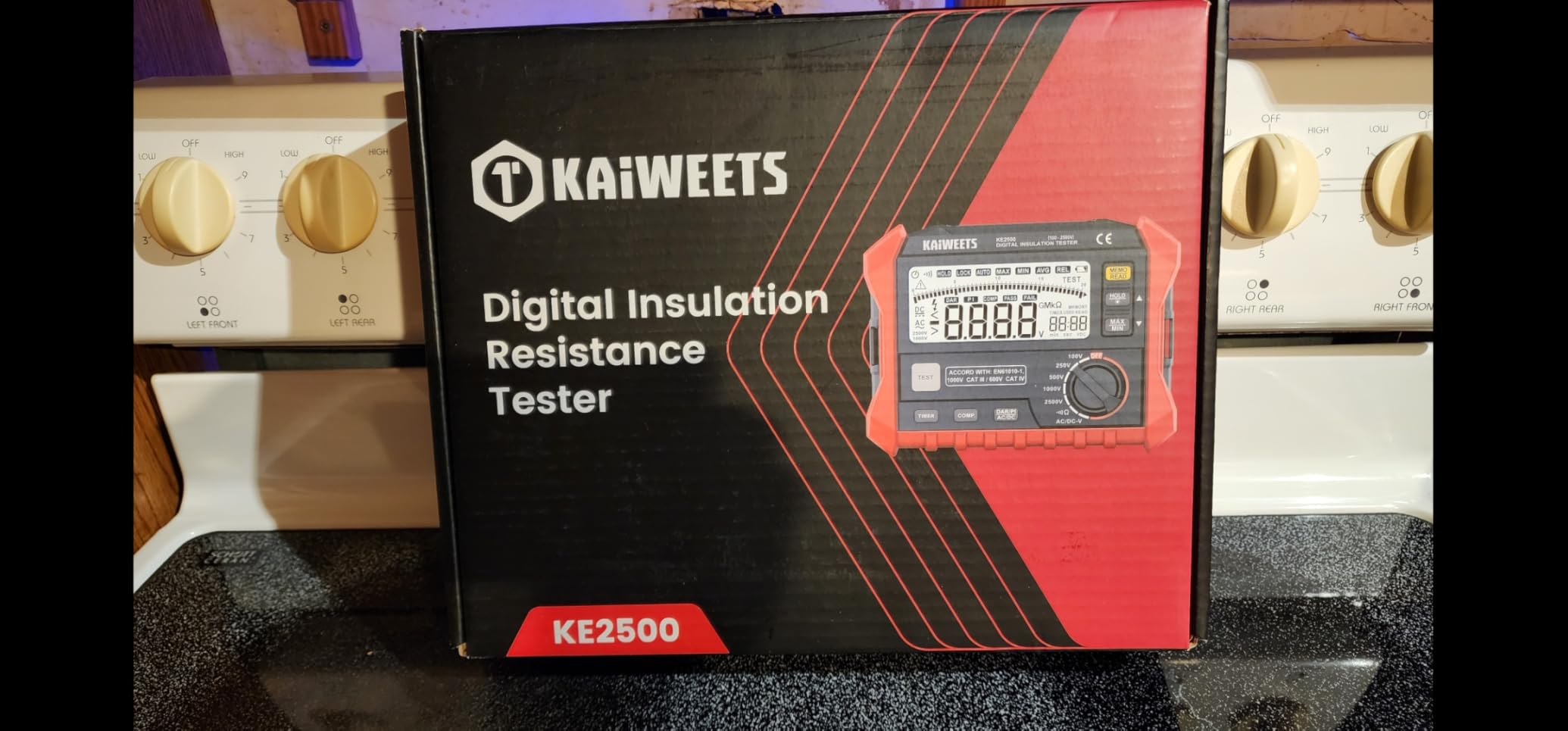

7. KAIWEETS KE2500 – Best Budget Tester That Reaches 2500V
KAIWEETS Megohmmeter Insulation Tester 0.1MΩ-200GΩ 2500V DAR/PI Ohm Meter
100V to 2500V test voltage
0.1 MOhm to 200 GOhm
On-device DAR and PI
1600 g
Pros
- 2500V test voltage and 200 GOhm range well beyond typical budget units
- On-device DAR and PI calculation removes manual timing
- Customisable PASS/FAIL thresholds give instant verdicts
- Large backlit display with analog bar and digits
- Measures AC and DC voltage plus continuity
- Carrying case included
Cons
- Some users report accuracy drifting after short service
- Alligator clip inserts on the leads are not secure
- Eight disposable AA batteries rather than a rechargeable pack
- Heavy and bulky for a handheld tester
- Test latches on immediately with no warning delay
The KE2500 is the specification outlier in the budget tier. A 2500V test voltage and a range up to 200 gigaohms is territory that normally costs several times more, and on paper it reads like a mid-tier instrument.
It calculates DAR and PI on the device, so you do not need a stopwatch and a phone to run a ten-minute test. Customisable PASS and FAIL thresholds give you an instant verdict against a standard you set in advance, which is how a crew can produce consistent documentation without a supervisor reading every screen.
It is compliant with IEC and EN 61010-1 at CAT III 1000V and CAT IV 600V, measures AC up to 750V and DC up to 1000V, and includes a continuity buzzer that triggers below 50 ohms. There is a fifteen-minute auto shutdown, data hold and a carrying case in the box.
When the extra voltage earns its keep
On three-phase motors, larger feeders and cables that run long distances, 1000V is at the limit of what a standard tester can push through the insulation. 2500V gives you real diagnostic headroom and separates a marginal result from a healthy one much more clearly.
The DAR and PI calculation is what makes it a genuine maintenance instrument rather than a pass or fail box, and at this level of capability it is unusual.
Where to be careful
Users do report accuracy drifting or failing after a short period of use, and the 14 percent one-star share centres on build consistency. The alligator clip inserts on the leads are not secure, and there is no polarity identification on the leads, which is a real safety consideration when you are working around a motor terminal box.
It is also the heaviest budget tester here at 1600 g, the case is bulky, and the test latches on immediately with no warning delay, so contact with live probe tips is possible. It runs on eight disposable AA batteries that can corrode in storage. Verify accuracy against a known reference before you trust a trending program with it.

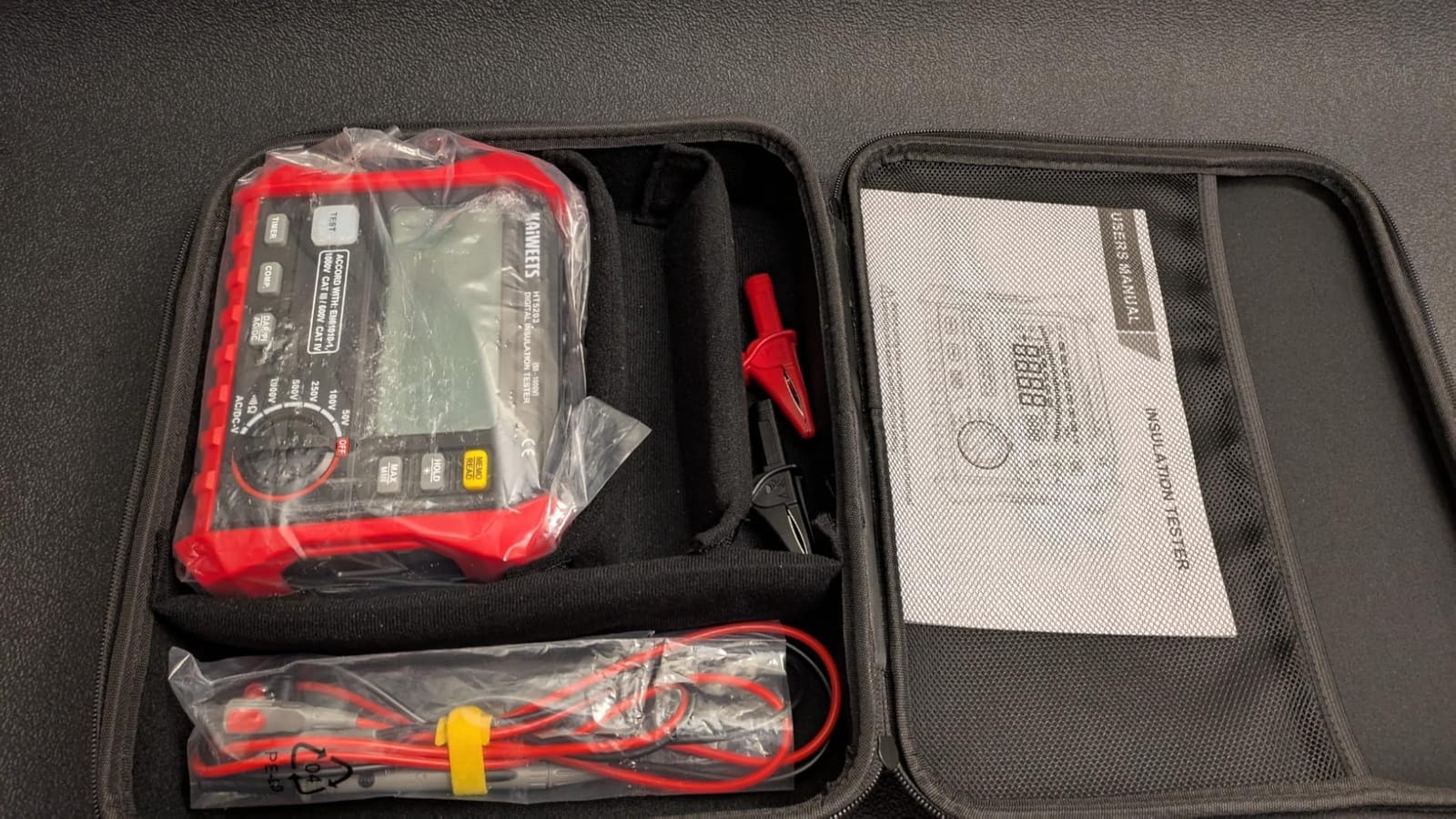

8. KAIWEETS KE1000 – Best Compact Multi-Function Tester
KAIWEETS Megohmmeter Insulation Tester 3MΩ-100GΩ 1000V DAR/PI Pro Ohm Meter
50V to 1000V test voltage
3.00 MOhm to 100.0 GOhm
Accuracy 3 percent plus 5 digits to 20 GOhm
Doubles as a multimeter
Pros
- Five test voltages from 50V to 1000V
- One-touch DAR and PI calculation
- Store and recall of readings with custom PASS/FAIL thresholds
- Doubles as a multimeter for DC
- AC and continuity
- Large backlit screen with data hold and auto-off
- Flexible silicone leads with attachable large clips
Cons
- Lowest measurable resistance is 3 MOhm so it reads OL on low-resistance circuits
- Voltage readings less sensitive than a dedicated multimeter
- Eight disposable AA batteries that can corrode in storage
- Readings can go unstable at very high resistance in humidity
The KE1000 is the one we would choose if a single instrument has to cover a small contractor’s entire needs. It measures from 3.00 megohms to 100.0 gigaohms across five selectable test voltages from 50V to 1000V, and the same leads test 0 to 1000V DC, 0 to 750V AC and 0.1 to 200 ohms of continuity.
Accuracy is specified at plus or minus 3 percent plus 5 digits up to 20 gigaohms, which is better than most of the budget tier and was confirmed in user testing. That matters more than the headline range, because a wide range is worthless if the reading wanders.
One-touch DAR and PI calculation removes the stopwatch entirely, and the store and recall function with custom PASS and FAIL thresholds means you can build a customer-ready report on site. The built-in timer function automates the test interval so results are repeatable between technicians.
It carries IEC ratings at CAT III 1000V and CAT IV 600V, has a double-insulated housing with a protective cover, and includes flexible silicone leads with attachable large alligator clips that are a clear improvement over the bare clips in this class.
Where it works hard
For a residential and small commercial contractor it covers commissioning, troubleshooting and periodic checks without a second meter in the bag. The large backlit screen, data hold and fifteen-minute auto-off are well judged for a full day of use, and the store and recall turns the tester into a record-keeping device as well as a meter.
The 4.7 rating across 46 reviews is the second strongest in this roundup relative to its volume, so the value proposition is not just on paper.
Where it falls down
The 3 megohm floor is a genuine limitation. It reads overload on low-resistance circuits such as floor heating sensor cables, so for that job the BTMETER below is the correct tool. Voltage readings are less sensitive than a dedicated multimeter and have no decimal resolution, so do not use it for fine voltage work.
Eight disposable AA batteries is a design choice we dislike, and they can corrode during storage. Readings can also go unstable at very high resistance in humid conditions. One unusual detail: the red Plus terminal outputs negative voltage, which surprises people who assume standard polarity. Check it once, know it, and it stops being an issue.
9. BTMETER VC60B – Best for Heated Floor Cables and One-Off Checks
BTMETER Megohmmeter 1000V Insulation Resistance Tester, Electrical Megaohm Meter 200MΩ~2K Megohm Megger with 250V/500V/1000V Testing Voltage, Digital Multimeter Measure AC DC Voltage
250V/500V/1000V test voltage
0.1 MOhm to 2 GOhm at 4 percent
1.1 pounds
UL 61010-1 and IEC 61010-2-030
Pros
- Three test voltages from 250V to 1000V with 4 percent accuracy
- Displays the specific resistance value not just a range
- 1999 count multimeter measures 750V AC and 1000V DC
- Light at 1.1 pounds and easy to handle
- 3.5 inch backlit HD LCD with data hold
- Maintains a 1000V test where smaller 6-AA units cannot
Cons
- Supplied alligator clips are cheap and can slip off the leads
- Test leads may need crimping for a secure connection
- Documentation is thin and results may not match the listing
- 2 GOhm maximum range limits high-resistance work
The VC60B solves a specific problem well. If you are checking radiant floor heating cables, a 0.1 megohm starting range matters far more than a huge ceiling, and this is the only tester in the roundup that goes that low.
It runs 250V, 500V and 1000V test voltages, measures 0.1 megohms to 2 gigaohms at plus or minus 4 percent accuracy, and it displays the specific resistance value rather than a range band. That single feature saves you from having to look up what a zone means.
The multimeter side is a 1999 count unit covering 750V AC at plus or minus 1.0 percent, 1000V DC at plus or minus 0.5 percent and a continuity buzzer. It is UL 61010-1 and IEC 61010-2-030 compliant with CE marking, and it holds a 1000V hipot test under leakage load current where smaller six-AA units cannot.
Why it earns its place
At 1.1 pounds it is the lightest instrument we carried, and the 3.5 inch backlit HD LCD with data hold reads well in a crawlspace under a floor. For checking heating cable, thermostat circuits and industrial generator windings, it is a capable low-cost instrument rather than a toy.
It is the right call for a one-off job, a property turnover check, or a technician who needs a megger for a single specialty task instead of as a core tool.
Where it falls short
The supplied alligator clips are the weak point and drive most of the three-star reviews. They are cheap and can slip off the test leads, which exposes you to high voltage at exactly the moment you least want it. Reviewers also report that the leads may need crimping or soldering to make a secure connection.
Documentation is thin, and some buyers report results not matching the listing for heated floor applications. The 2 gigaohm ceiling also limits high-resistance measurement work. If your business depends on these readings for a client report, the clip hardware is not a risk worth taking.
10. Extech 380260 – Best Complete Kit for HVAC Technicians
Extech 380260 Autoranging Digital Insulation Tester, 250/500/1000V
250V/500V/1000V test voltage
Up to 2000 MOhm
Automatic discharge
1 kg
Pros
- Autoranging with three selectable test voltages
- Measures to 2000 MOhm on a dual backlit LCD showing voltage and resistance
- Handles low resistance
- continuity and AC/DC voltage
- Automatic discharge plus protective holster with stand
- Lock power-on and data hold
- Complete kit with heavy duty leads
- case and batteries
Cons
- Several buyers report the insulation function failing within months
- Owner's manual is weak and case screws are hard to remove
- Awkward battery compartment for long-term storage
- Some units arrived DOA or gave erroneous readings
- 2000 MOhm ceiling with no PI or DAR
The Extech 380260 is the most complete field kit in this roundup straight out of the box. You get the tester, heavy duty test leads, a carrying case and six AA batteries, which means nothing to source before your first job.
It is autoranging with selectable 250V, 500V and 1000V DC test voltages, measuring insulation resistance to 2000 megohms. The large dual backlit LCD shows both the test voltage and the resistance at the same time, which removes a step and prevents a very common user error of misreading a value taken at the wrong voltage.
Automatic discharge after each test is fitted, along with a protective holster that doubles as a stand so the instrument is not lying on a dirty floor. Lock power-on stops accidental activation in a toolbag, and data hold freezes a reading while you connect the next lead. There is an extra negative lead with an alligator clip for hands-free mid-air testing, which is a genuinely thoughtful inclusion for motor work.
For HVAC work it covers compressor windings, blower motors and control circuits, and adds low resistance, continuity and AC and DC voltage measurement. The housing is solid and comparable to older, more expensive meters in feel.
Why HVAC techs like it
The combination of features in one enclosure means a compressor diagnostic does not require a second instrument, and the stand and holster make it practical on a roof or in a mechanical room where there is no clean bench. The auto discharge is the safety feature that matters most on a capacitor and compressor workflow.
It sits in the middle of the price range for this roundup while still including the case and batteries, which usually costs extra elsewhere.
Where the durability complaints bite
Several buyers report the insulation test function failing within months, and some units arrived dead on arrival or produced erroneous readings. A 14 percent one-star share reflects that. The housing feels solid, but the insulation test circuit is the part that gives up.
There is also a 2000 megohm ceiling with no PI or DAR calculation, so it cannot support a trending maintenance program. The owner’s manual is weak and the case screws are hard to remove, and the battery compartment is awkward for long-term storage. If you need defensible long-term data, buy a model with result storage instead.
How to Choose an Insulation Resistance Tester
Start with test voltage, because it is the one choice you cannot work around. The rule of thumb is that you test at or above the equipment’s rated voltage. Low-voltage control wiring wants 250V or 500V. 120V and 240V circuits want 500V. 480V three-phase equipment wants 1000V. Anything above that, and you are into industrial territory where you need a higher-voltage machine.
Second, look at resistance range, and look at the low end as well as the high end. Most testers top out somewhere between 1000 and 4000 megohms, which is plenty. But the floor matters too, and a 3 megohm minimum will read overload on a low-resistance circuit such as heating cable.
Third, check the safety rating. CAT IV is what applies to service entrance and the panel work downstream of it, and CAT III covers distribution panels and fixed installations. An electrician working commercial and industrial should not accept less than CAT IV 600V. Several testers here carry that rating, including the Klein, the UNI-T and both KAIWEETS models.
Fourth, decide whether you need PI and DAR. Any instrument that calculates them saves you a stopwatch and gives you a number your client can compare next year. Without it, you are doing a spot reading and hoping it means something.
Fifth, look at automatic discharge. Every serious risk with insulation testing is residual charge, and a tester that discharges for you removes that risk entirely. Never use an instrument without it on a cable run.
Sixth, consider data logging only if you are paid to produce records. If you are testing to troubleshoot, wireless logging is a convenience. If you are running a maintenance program with trending requirements, it is the difference between a defensible report and a stack of handwritten notes.
Finally, weigh durability honestly. A cheap tester that fails in the insulation circuit after six months costs more over its life than one that lasts. The forum consensus among electricians is consistent on this point, and it is why we treat the flimsier budget units as single-job tools rather than workshop instruments.
Test Voltage Cheat Sheet for Electricians
Use the highest test voltage the equipment’s insulation is rated for, and never higher than the equipment rating allows. These are the working voltages we use most often.
For 120V and 240V single-phase circuits and lighting, test at 500V. Most community practice is that a reading above 100 megohms at that voltage means the insulation is fine, which matches the rule quoted on electrical-contractor.net that if the megger indicated greater than 100 megohms your insulation is OK.
For low-voltage control circuits, thermostat wiring, PLC and relay logic, use 250V or lower. Do not push 1000V into sensitive electronics. The 50V and 125V steps on the Fluke, Klein and KAIWEETS models exist precisely for this.
For 480V three-phase motors and feeders, test at 1000V. For three-phase motors above that, or for cables running significant distances, 2500V and above gives you real diagnostic headroom, which is the argument for the KAIWEETS KE2500.
For transformers, motors and generators above 1000V, you are into high-voltage territory. Instruments in the 5kV to 15kV class sit in a completely different procurement bracket and are outside what most electricians need.
How to Read Your Megger Result
A healthy result on a 500V test is a reading in the hundreds of megohms or above. A reading above 100 megohms is the widely used practical pass mark, and anything in the gigohm range on new equipment is excellent.
What matters more than the number is the shape of the curve. When you apply test voltage, three things happen. A capacitive charging current appears instantly, then a slower absorption current decays over minutes as the insulation polarises, and a steady leakage current sits underneath everything. The insulation resistance rises over time because those first two currents fade out.
PI is the ten-minute reading divided by the one-minute reading. A PI of 1.0 or higher indicates healthy insulation. Above 4.0 is very good. Below 1.0 means the reading is falling with time, and that is a bad sign, because leakage is dominating.
DAR, the dielectric absorption ratio, compares the one-minute reading to the fifteen-second reading over the first minute. It is more useful on small, healthy machines and less reliable on large capacitive ones, which is why experienced electricians lean on PI for anything with real capacitance.
Correct for temperature when trending. Insulation resistance falls sharply as equipment warms up, so a reading taken on a hot motor will look far worse than the same motor cold. The Fluke 1587 FC handles temperature compensation through its app, and on any other instrument, record the temperature alongside the reading or the trend is meaningless.
Digital vs Analog Meggers: Which Suits Which Electrician
This is a genuine argument among working electricians rather than a marketing question. An analog megohmmeter gives you a needle on a scale and a non-linear time-resistance curve drawn by the movement itself. Some electricians maintain that you can read insulation quality straight off the shape of the curve, and that a digital box showing a single number loses something real.
For older equipment and older technicians, the argument is persuasive. When you are judging whether insulation is dry, damp or contaminated, the curve is the diagnosis, and an analog scale shows you the diagnosis in a glance.
For everything else, digital wins. You get a stable number, result storage, calculated PI and DAR, auto-ranging, and no parallax error. The generational shift in the forums is clear, with working electricians describing digital IR testers as quick and accurate and noting how much better they are for commissioning new installations.
Our verdict is simple. If you are a maintenance technician or a contractor producing records, buy digital. If you are a plant electrician who tests old rotating machines daily and trusts their own eye, an analog meter remains a legitimate second instrument rather than a wasted purchase.
Insulation Testing Safety: Never Test a Live Circuit
De-energise first, always, and apply lockout-tagout. Every serious injury and every destroyed instrument we know of traces back to someone testing a circuit they believed was dead. A megger at 1000V will energise whatever it touches.
Never connect to a PLC, a VSD, a UPS, a battery charger, or any solid-state device. These are not hardened against a megger test and they fail. Disconnect them first, and if that is impractical, accept that you cannot test that circuit and say so.
Let the discharge finish. Automatic discharge is not instant on a long cable run, where capacitance is high. Wait for the instrument to indicate it is clear, and verify before you touch the conductor.
Connect with the circuit fully broken, and use the guard terminal when you are testing one conductor of a multicore run, so surface leakage along the cable does not distort the result.
Wear eye protection and keep your hands clear of the probe tips during the test. Some of the budget units in this roundup latch the test on with no warning delay, which makes this less automatic than it should be. And keep a clear head, because the job you rush is the one where the leads are still connected.
Frequently Asked Questions
Are an insulation tester and a megger the same thing?
Yes. Megger is the traditional trade nickname and also a brand name, while megohmmeter is the formal instrument name and IR tester is the abbreviation. All three describe a handheld device that applies a high DC test voltage and measures leakage current to report insulation resistance in megaohms or gigaohms.
Which Megger tester is best?
For most electricians the Supco M500 is the best first buy, because it is simple, rugged, auto-discharges and carries the largest user base in this roundup. The Klein ET600 is the best value if you also want a full TRMS multimeter, and the Fluke 1587 FC is the best choice for maintenance work that needs PI, DAR and wireless reporting.
Is Fluke worth it or is a mid-range tester good enough?
Mid-range testers are genuinely good enough for spot checks, commissioning and HVAC work, which is why the Klein ET600 and the KAIWEETS models perform well. Fluke earns its premium for the NIST traceable calibration certificate, live circuit detection, app-based reporting and temperature compensation, which matter once you are producing records other people rely on.
Why is a megger better than a multimeter?
A multimeter measures volts, ohms and continuity using a fraction of a volt and a range of up to a few thousand ohms. A megger applies 500V to 1000V DC and measures into tens of thousands of megaohms, which is the only way to see insulation that is absorbing and leaking before it fails.
What is a good megger reading at 1000V?
A reading above 100 megohms is the widely used practical pass mark, and values in the gigohm range on new equipment are excellent. The number matters less than the trend and the PI value, so record the temperature too, because resistance falls sharply as equipment warms up.
What test voltage should I use for 240V circuits?
Test 240V circuits at 500V. Use 250V or lower for low-voltage control circuits and electronics, and 1000V for 480V three-phase motors and feeders. Never exceed the equipment’s insulation rating, and never test a live circuit.
Do I need a CAT IV insulation tester?
If you work on service entrance equipment or anything downstream of the service, yes. CAT IV applies to the origin of supply, and CAT III covers distribution panels and fixed installations. Electricians doing commercial and industrial work should not accept less than CAT IV 600V, which the Klein, UNI-T and KAIWEETS models all carry.
Digital or analog megohmmeter, which should I buy?
Buy digital unless you specifically test older rotating machines and trust your own eye on a curve. Digital gives you stable readings, result storage, calculated PI and DAR and no parallax error, which is why most working electricians have moved that way. An analog meter remains useful as a second instrument for judging curve shape on old plant.
How often should I insulation test?
Test at commissioning, after any fault, and then on the interval set by your maintenance program, which for rotating machines is commonly annual. Keep records so you can trend readings, because insulation degrades gradually and the trend shows the problem long before any single reading fails.
Final Verdict: The One to Buy
If you buy only one insulation resistance tester from this roundup, make it the Supco M500. It is compact, rugged, magnetically tipped and automatically discharges, and with 1600 reviews behind it you are buying the most field-proven instrument in the category. For a residential or light commercial electrician that is genuinely the right answer, not a compromise.
Add the Klein ET600 if you want one instrument to cover voltage, continuity and insulation. Step up to the Fluke 1507 when you need documented calibration on plant work, and to the Fluke 1587 FC when you are writing reports with PI and DAR trending rather than spot readings. The KAIWEETS models cover the 1000V and 2500V budget slots, and the UNI-T UT501A is the right first instrument for an apprentice.
Whichever one you choose, remember the two rules that matter more than the model. De-energise and lock out before every test, and record the reading with the temperature attached so the trend means something next year.
And if you are still putting a kit together, our composite toe work boots guide covers the footwear half of the job-site setup.
